MK35L
Max. thrust: 10000N
Speed: 25mm/sec
Brushless DC (BLDC) motor

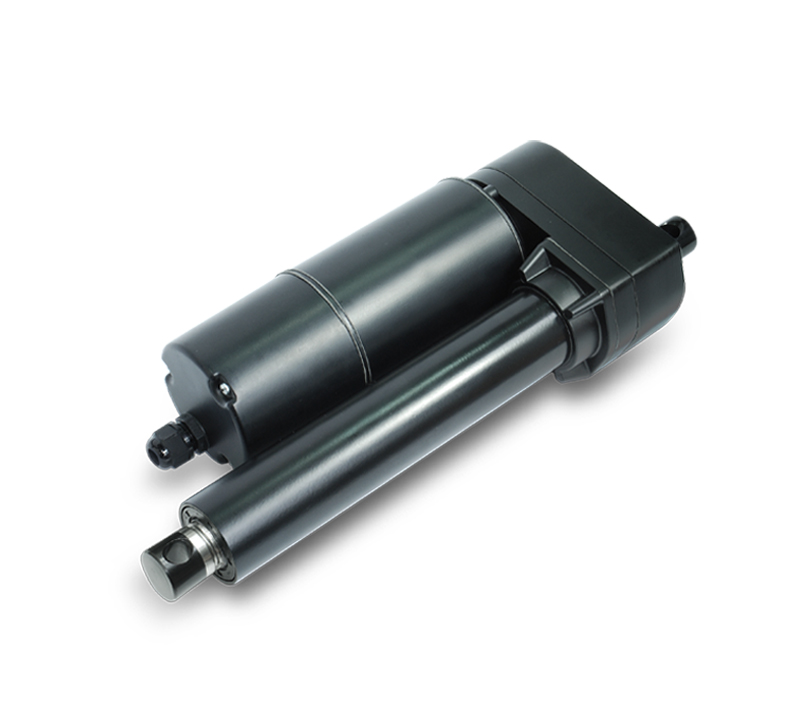

IA5
Max. thrust: 7000N
Max. speed: 52.8mm/s
AC motor
ID10
Max. thrust: 7000N
Max. speed: 72.1mm/s
Stroke: 102 - 610mm
ID10G
Max. thrust: 9000N
Max. speed: 14mm/sec
12 / 24V DC
ID10K
Max. thrust: 7000N
Max. speed:14mm/sec
12 / 24V DC
ID10P
Max. thrust: 12500N
Max. speed: 20mm/s
IP66, IP67, IP69K
ID10S
Max. thrust: 7000N
Max. speed: 5.5mm/s
For Outdoors
ID11
Max. thrust: 7000N
Max. speed: 36.5mm/s
Shorter installation dimensions
ID12
Max. thrust: 7000N
Max. speed: 72.1mm/s
IP66, IP69K
LD20
Max. thrust: 2500N
Max. speed: 27.5mm/sec
12 / 24 / 48V DC
MK35
Max. thrust: 10000N
Max. speed: 63mm/sec
IP66M/IP67, IPX9K

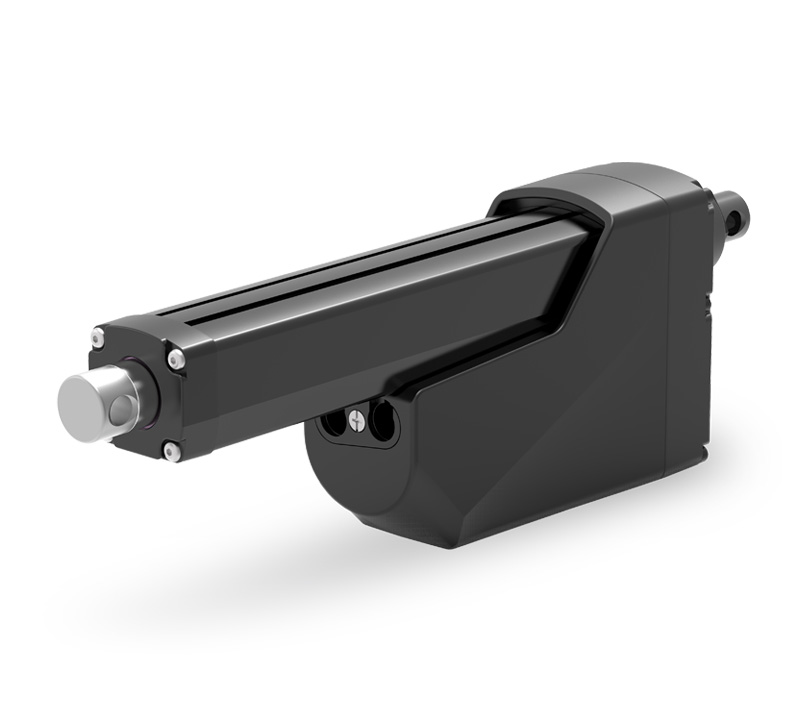

MK35L
Max. thrust: 10000N
Speed: 25mm/sec
Brushless DC (BLDC) motor
ID10BT
Max. thrust: 10000N
Max Speed: 72mm/sec
IP level: IP65 (Static; non-action)
ID16
Max. thrust: 5500N
Max Speed: 3.3mm/sec
IP level: IP65
ID18
Max. thrust: 12000N
Max Speed: 3.3mm/sec
IP level: IP65 (Static; non-action)
LD2
Max. thrust: 800N
Max Speed: 16mm/sec
IP level: IP54
LD3L
Max. thrust: 1000N
Max Speed: 20.7mm/sec
IP Protection level: IP20
LD10
Max. thrust: 1000N
Max Speed: 18mm/sec
Stroke range:300mm
LD12
Max. thrust: 2000N
Max Speed: 33.5mm/sec
SInput voltage: 12V DC / 24V DC
LD36
Max. thrust: 1000N
Max Speed: 43.9mm/sec
IP66,IP69K
LD40
Max. thrust: 4000N
Max Speed: 20.5mm/sec
IP level: IP54

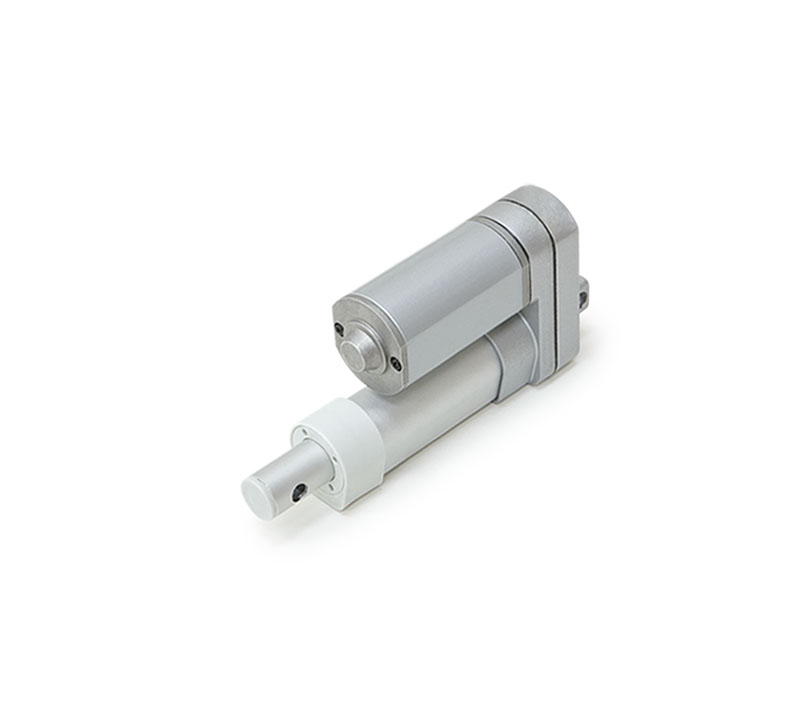

MD10
Max. thrust: 1000N
Max Speed: 36mm/sec
IP level: IPX5

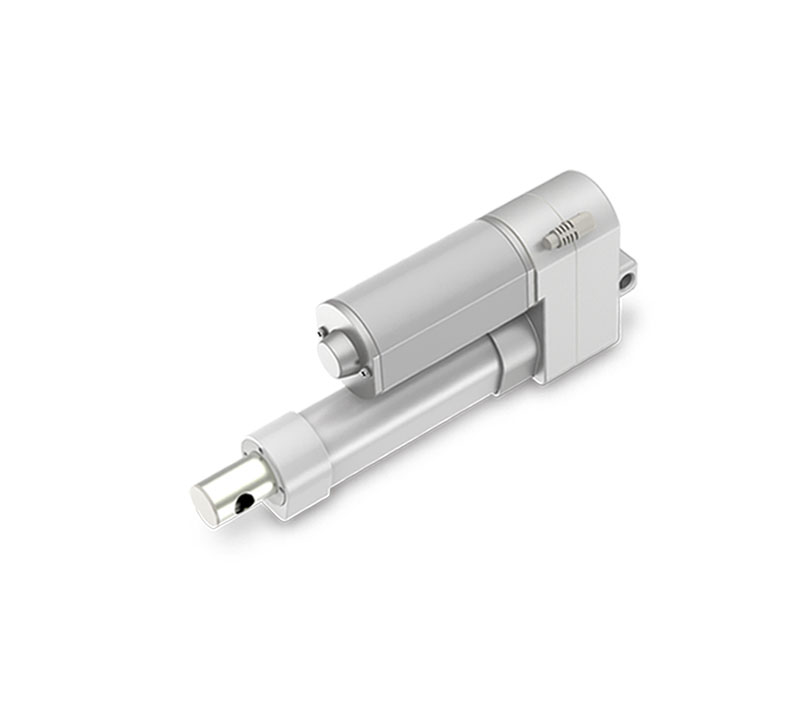

MD21
Max. thrust: 2000N
Max Speed: 23.6mm/sec
IP level: IPX5

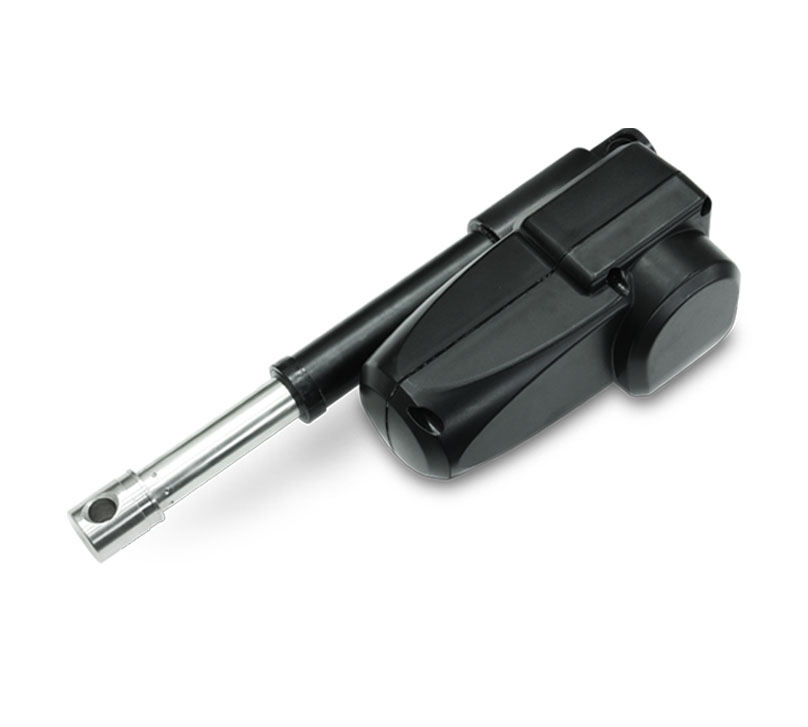

MD52
Max. thrust: 1000N
Max Speed: 25mm/sec
IP level: IP66, IP69k

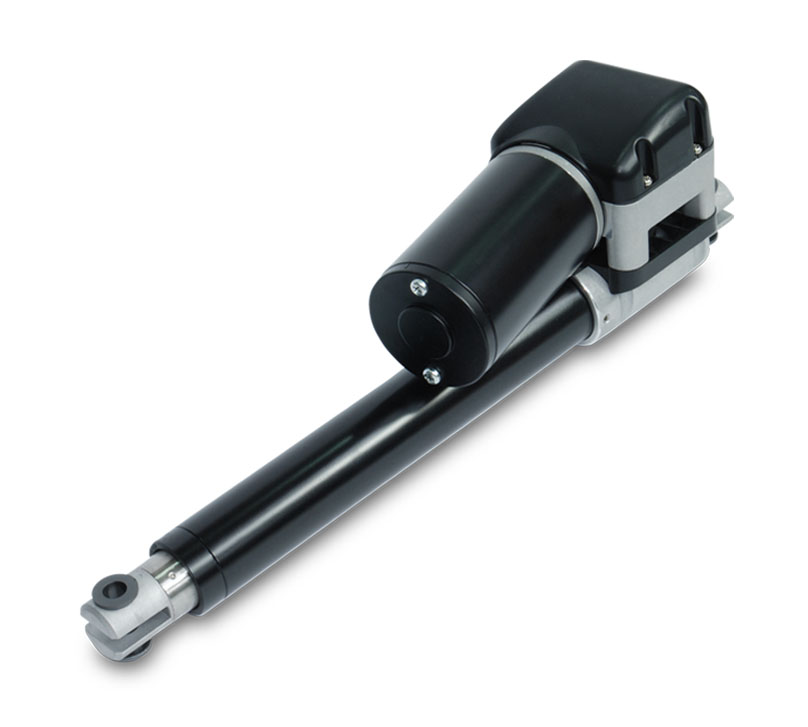

MD53
Max. thrust: 3500N
Max Speed: 10mm/sec
Stroke range: 300mm
MD56
Max. thrust: 5000N
Max Speed: 40mm/sec
IP level: IP21

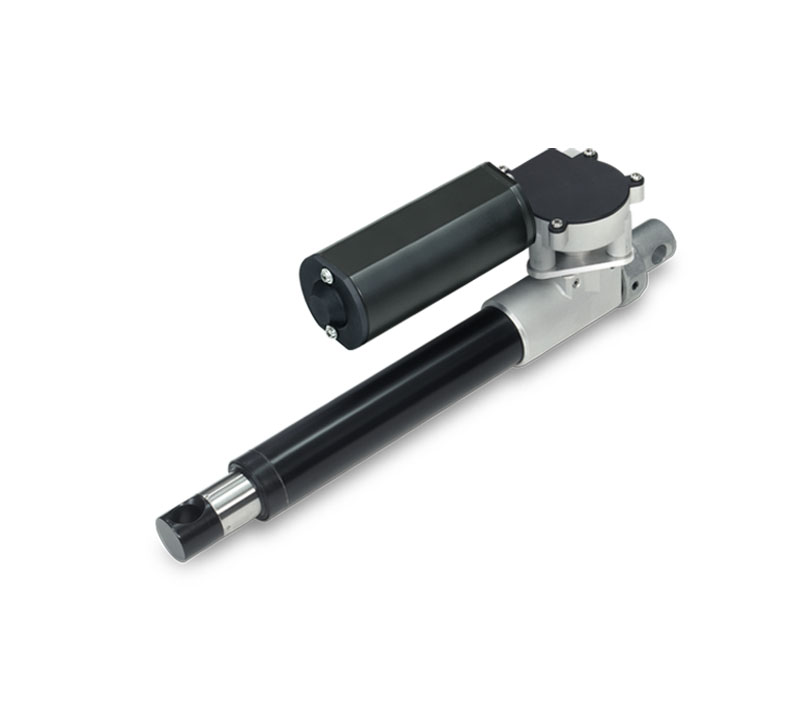

MD57
Max. thrust: 4000N
Max Speed: 12.6mm/sec
Stroke: 50 ~ 300mm

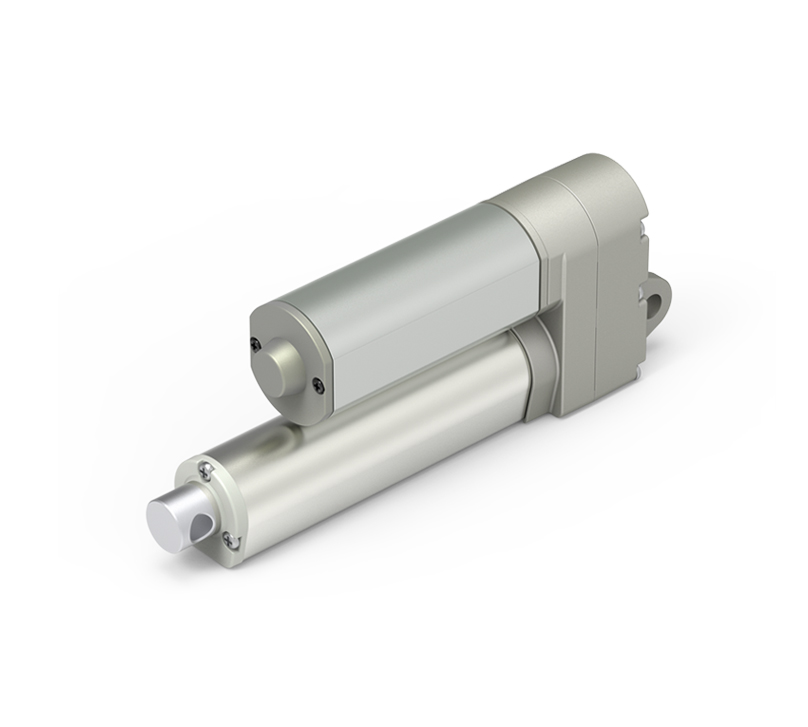

MK32
Max. thrust: 3500N
Max Speed: 26mm/sec
IP Level : IPX4,IP66
MK35
Max. thrust: 1000N
Max Speed: 5mm/sec
Stroke range: 300mm

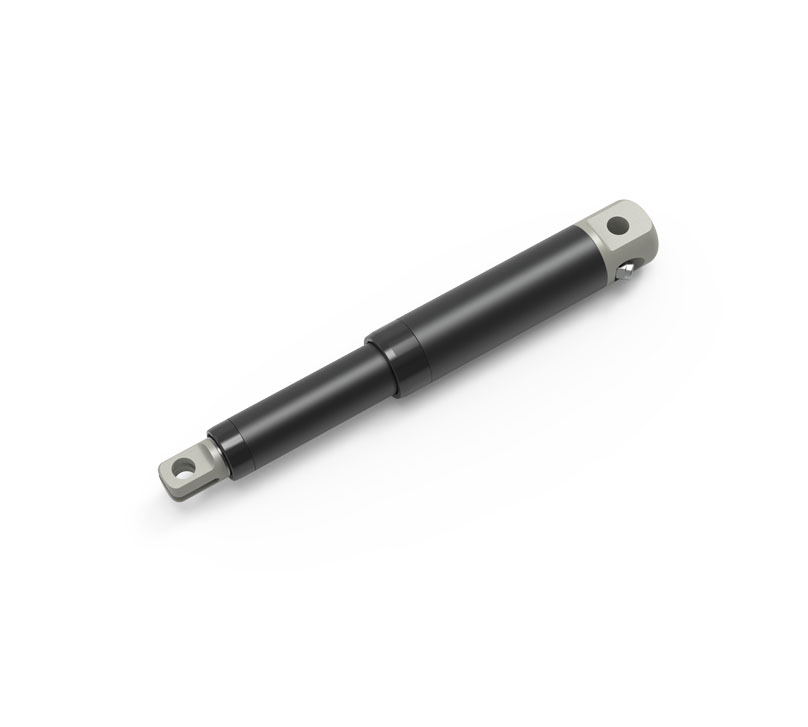

MK50
Max. thrust: 4500N
Max Speed: 34mm/sec
IP level: IP66, IP67, IPX9K
MK7L
Max. thrust: 10000N
Max Speed: 25mm/sec
IP level: IP66/IP67, IPX9K
MKS1
Input voltage: 12V DC
Max. load: 80N
IP level: IP66/IP69K

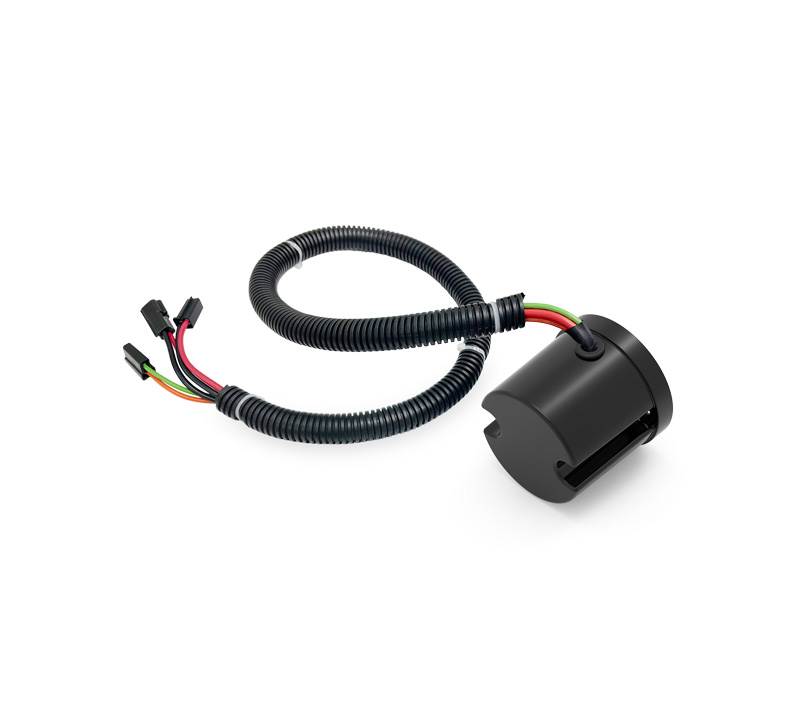

CI71
1 port for actuator
Input/output: 12V DC
Control actuator stop and go with a low current switch

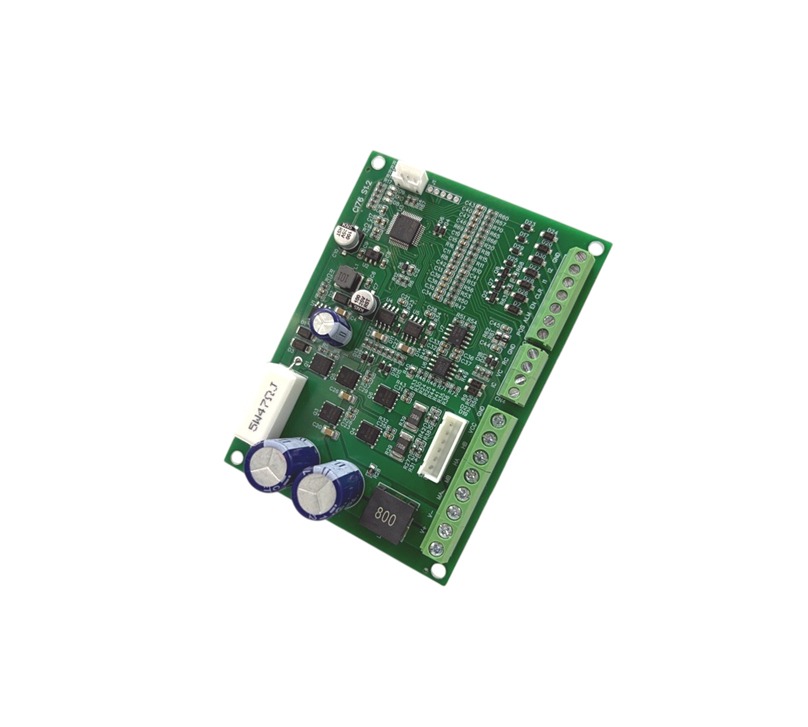

CI76
1 port for actuator
Input/output: 12~48V DC
Accepts various control input

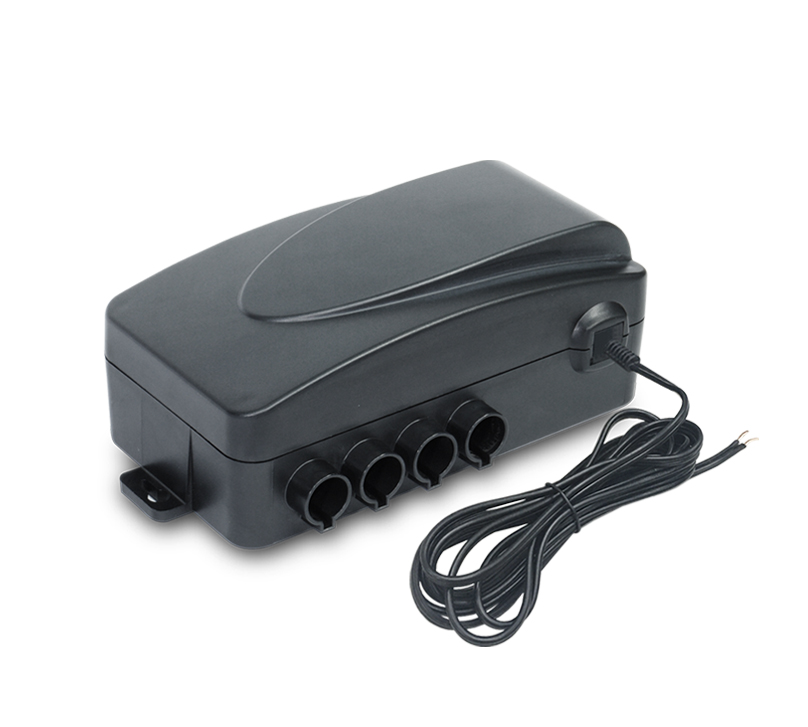

CB3T-SYD
Max. 2 channels (sync.)
Input: 12V DC/AC
Analog control
CF16
1 port for actuator
Input: 24V DC
Fire signal to open window

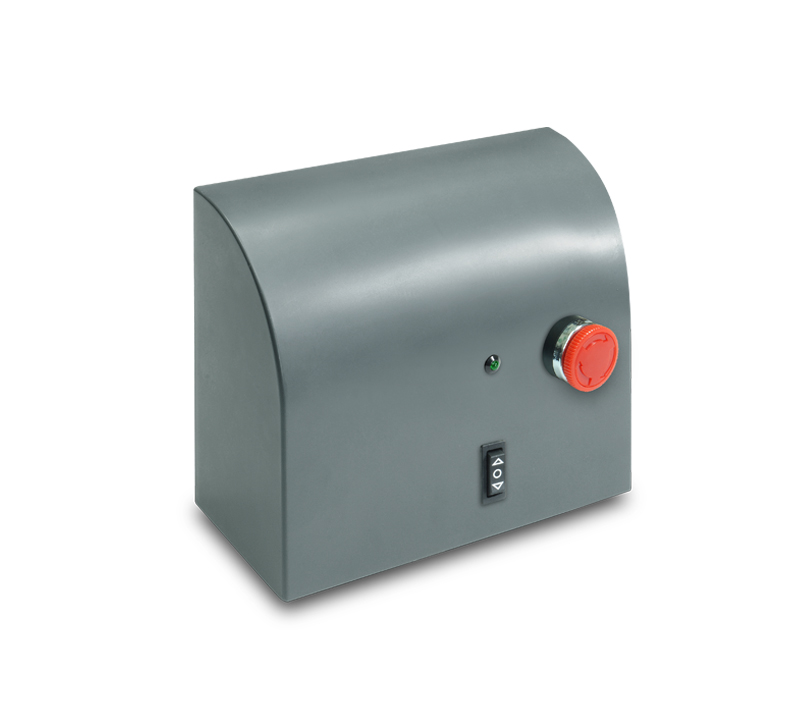

CI10
Max. 1 channel
Input: 110 / 230V DC
Emergency stop button

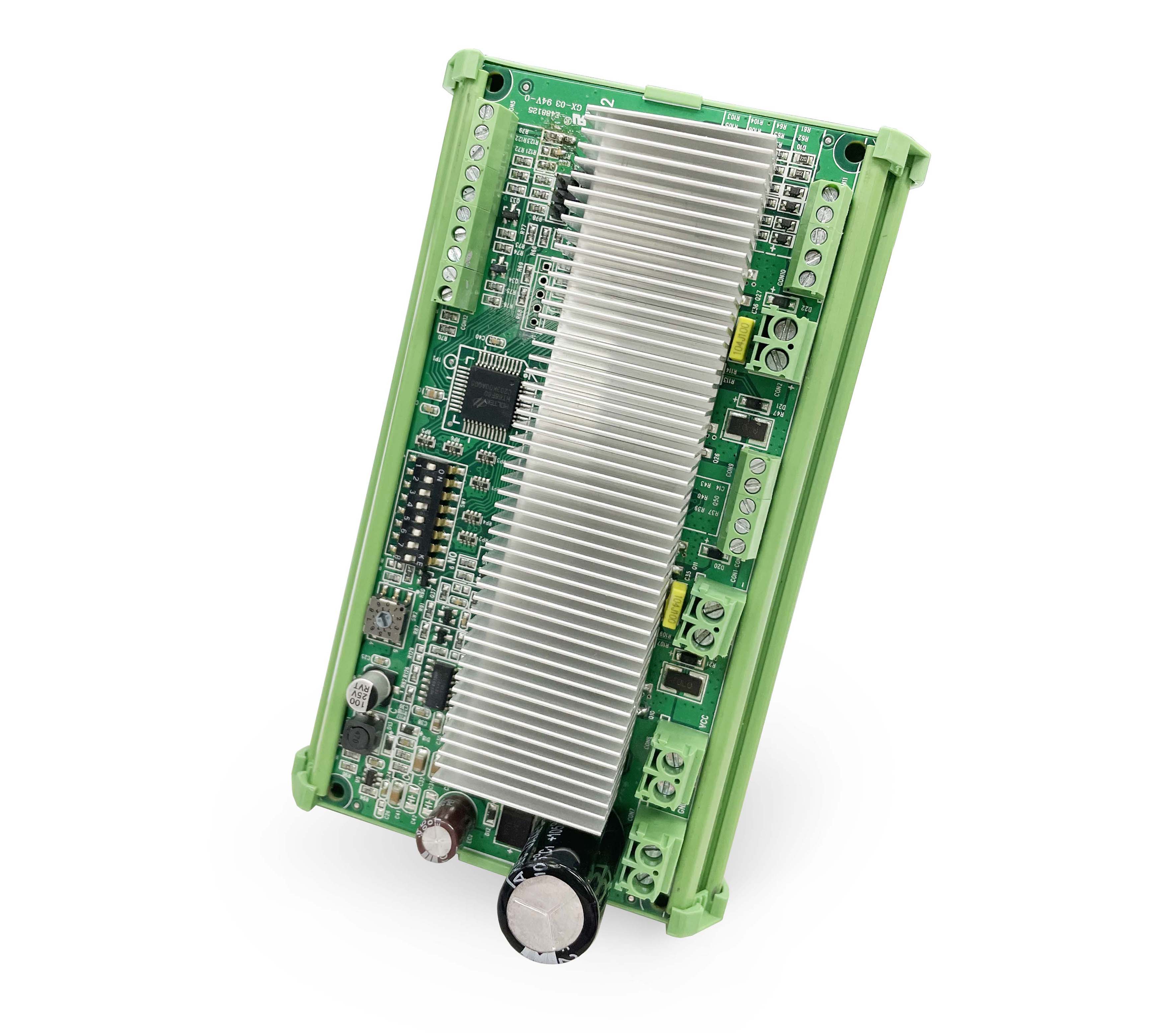

CI72
Max. 2 channels (sync.)
Input: Nominal 12 / 24V DC
Switch control or position input mode

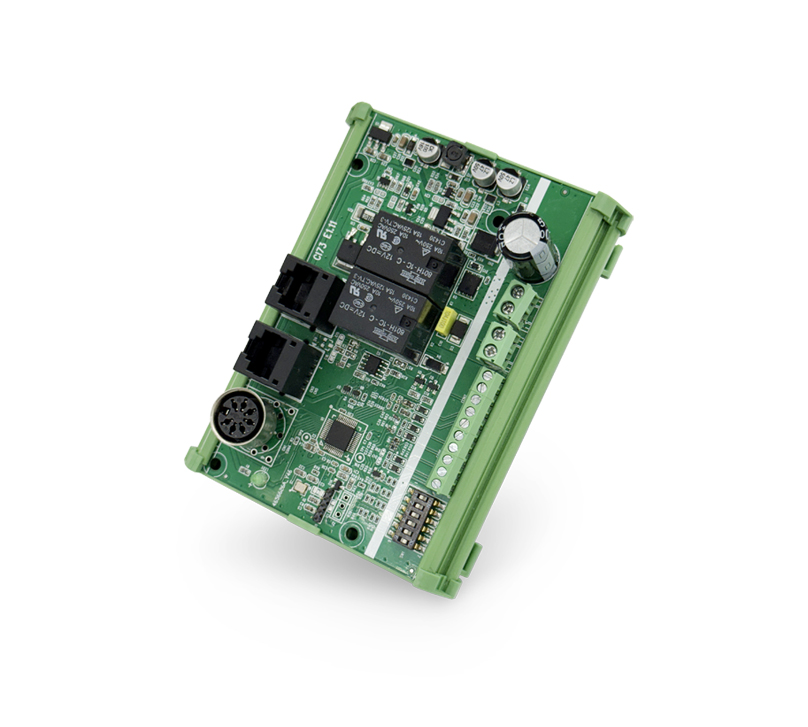

CI73
Achieve sync. Control up to 8 motors
Input: 12 / 24V DC
Output: 16A@12Vdc / 10A@24Vdc

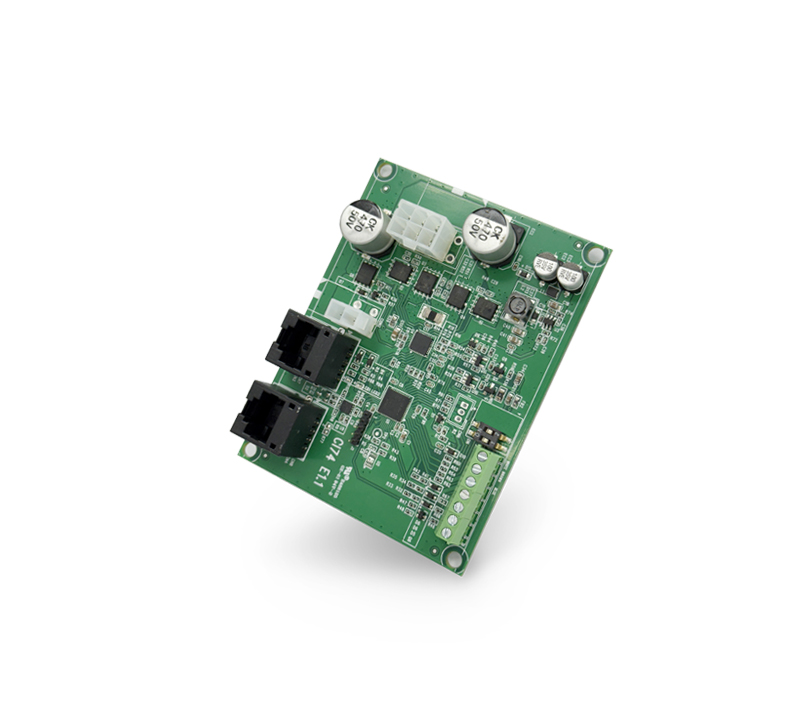

CI74
1 output port for actuator
Input/output: 12~29V DC, 16A
Modbus-RTU protocol

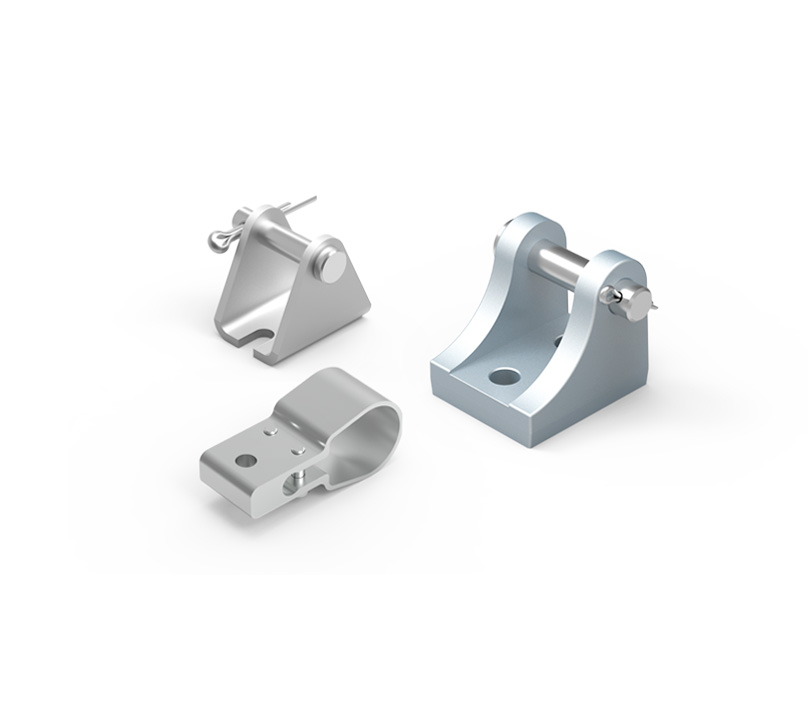

Mounting Bracket
Mounting Bracket
For installing linear actuators
A variety types available

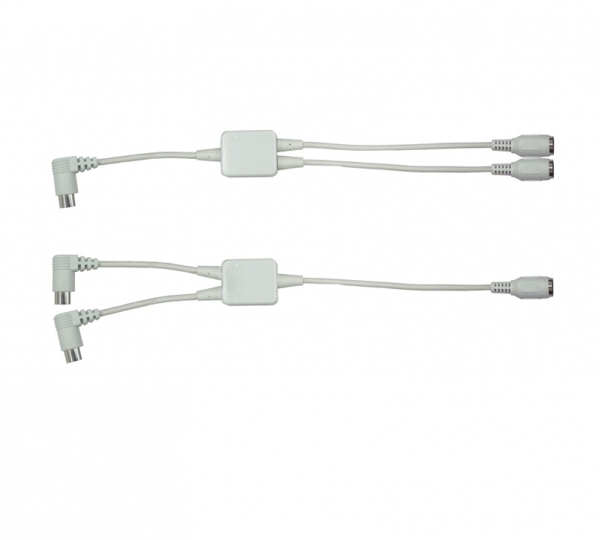

Y Cable
Y-shape cables
Connect between hand control and control box
Industrial and agricultural actuators provide reliable motion control for machinery like automation systems, tractors, and harvesters. Built for harsh environments, they offer high load capacity, durability, and improved efficiency.
