Furniture actuators provide smooth and reliable motion control for applications such as recliners, adjustable beds, and height-adjustable desks. Designed for quiet operation and compact integration, they enhance comfort, convenience, and modern automation in residential and commercial furniture.
Main Application : Adjustable bed, lifting table, recliner, get-up chair

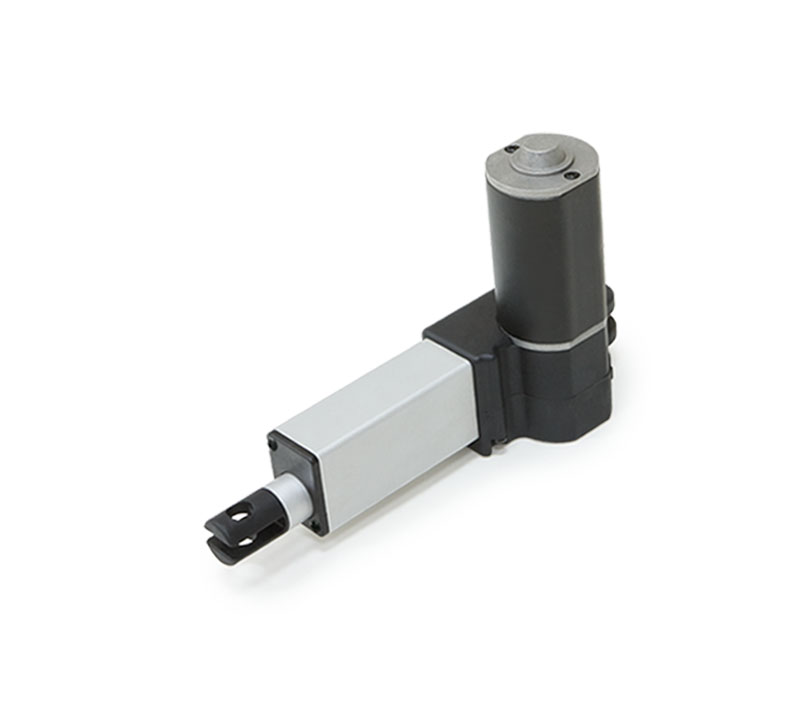

FD10
Max. thrust: 1000N
Speed: 15mm/sec
Stork range: 300mm/s

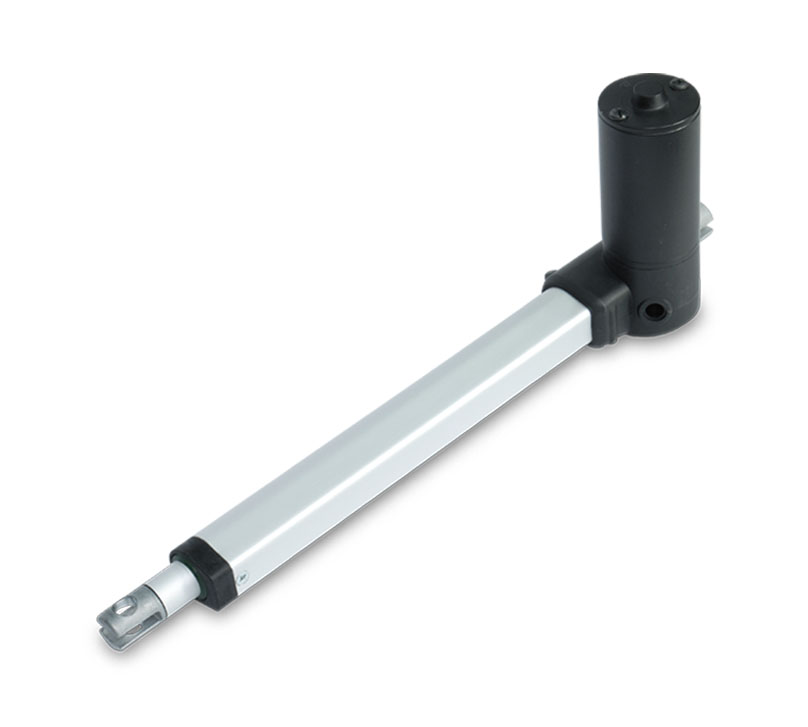

FD20
Max. thrust: 2000N
Max. speed: 33.3mm/s
Stroke range:300mm

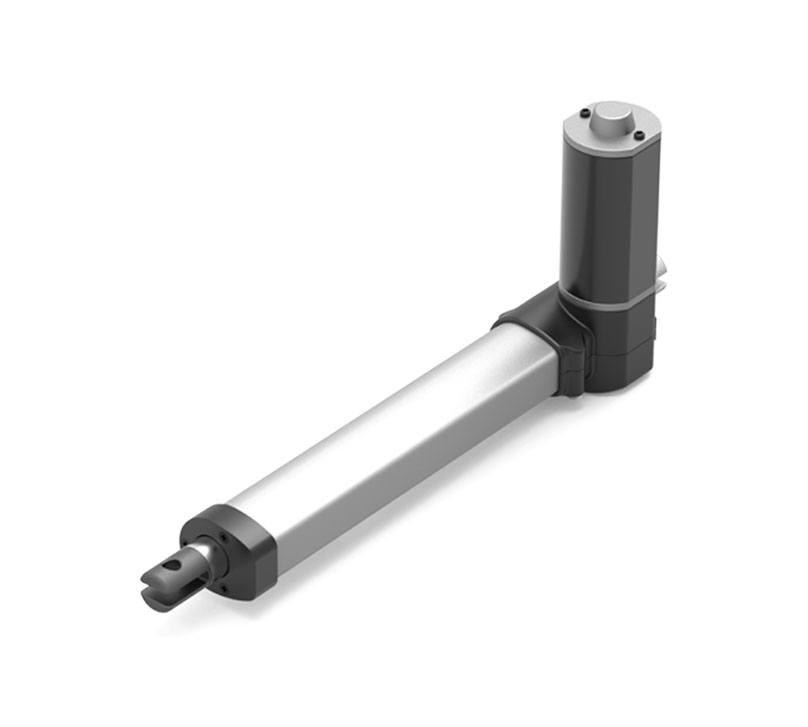

FD40
Max. thrust: 4000N
Max. speed: 30mm/s
Stroke range: 400mm

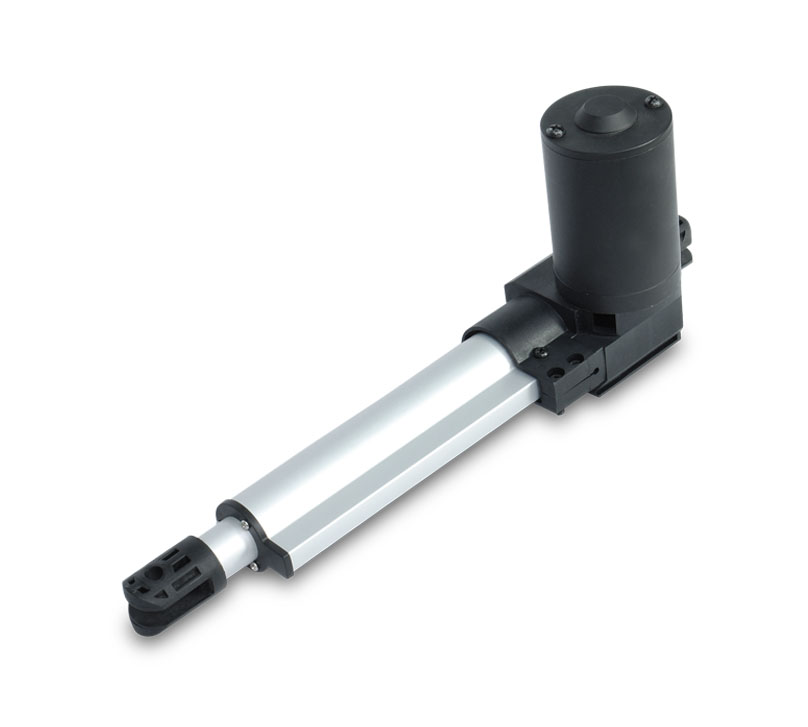

FD60
Max. thrust: 6000N
Max. speed: 33.3mm/sec
Stroke range: 300mm

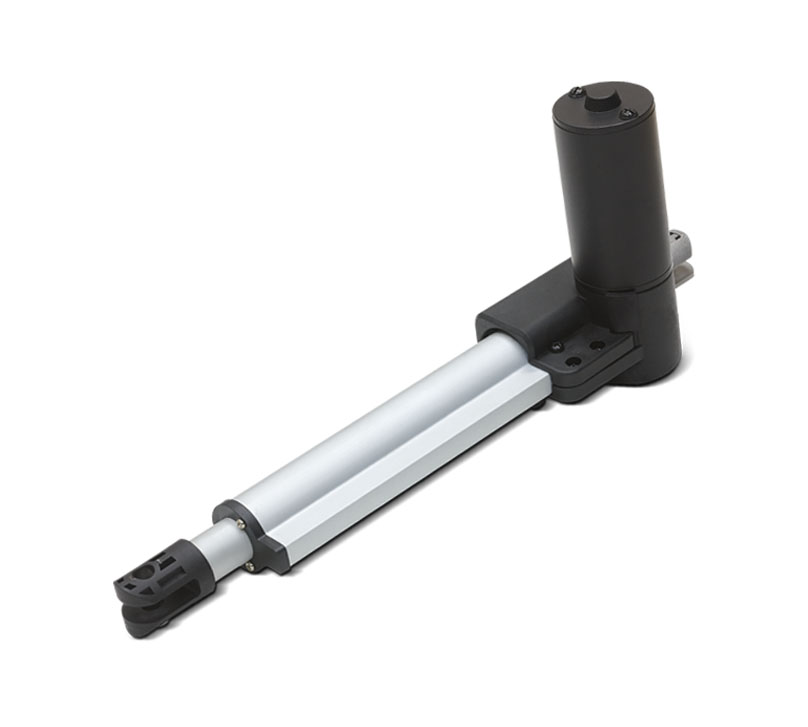

FD61
Max. thrust: 6000N
Max. speed: 33.3mm/sec
Stroke range:300mm

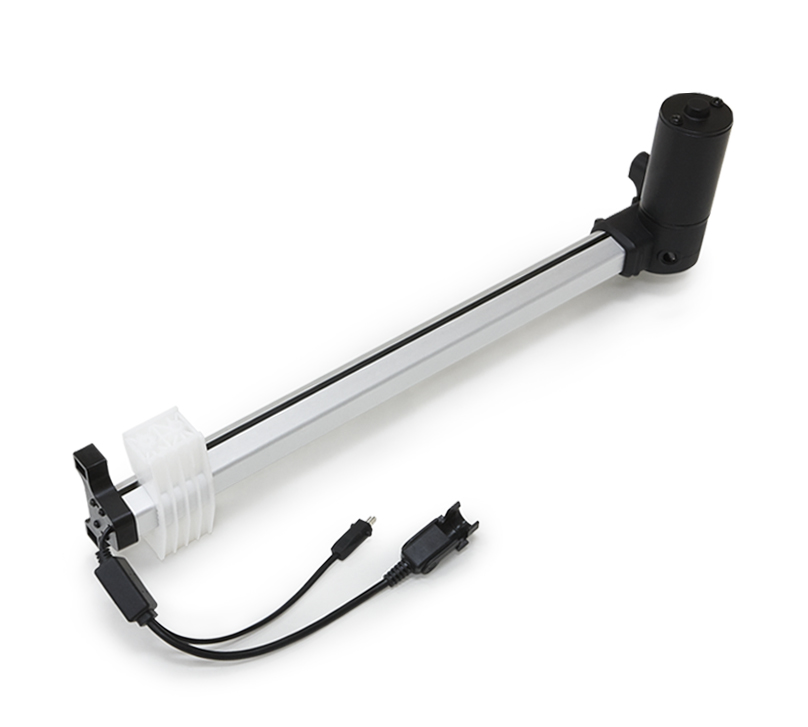

BD21
Max. thrust: 2000N
Max. speed: 52mm/s
Stroke: 50~333mm

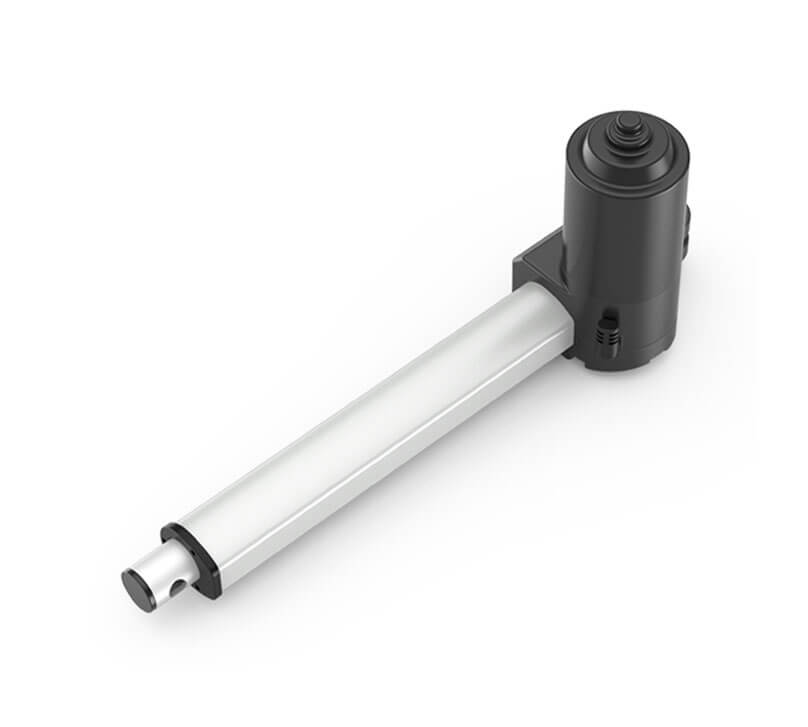

MK33
Max. thrust: 6000N
Max. speed: 4.2mm/s
Stroke range :300mm
BD23
Max. thrust: 1500N
Max. speed: 40mm/s
Stroke range: 230mm

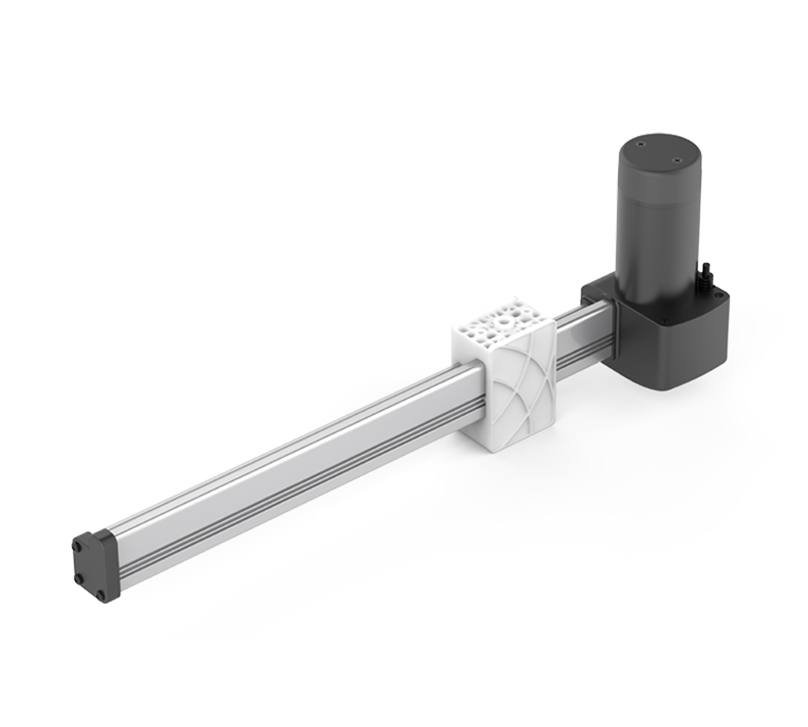

BD61
Max. thrust: 5000N
Max. speed: 16.1mm/sec
Stroke range: 1000mm
BD62
Max. thrust: 3000N
Max. speed: 6.2mm/sec
Stroke range: 100mm

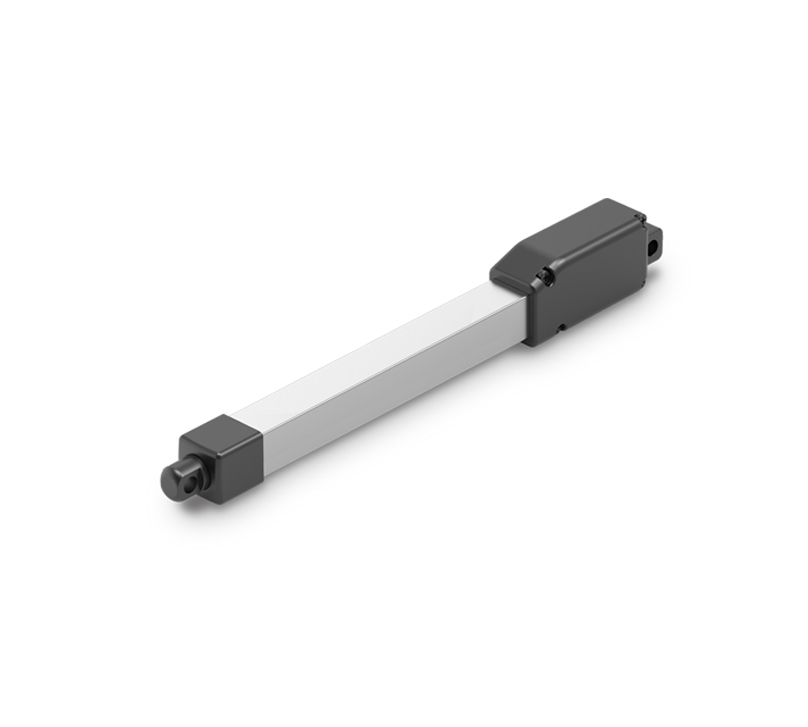

MKS1
Max. load: 80N
Stroke: 10 / 30 / 50 / 100mm
IP level: IP66/IP69K

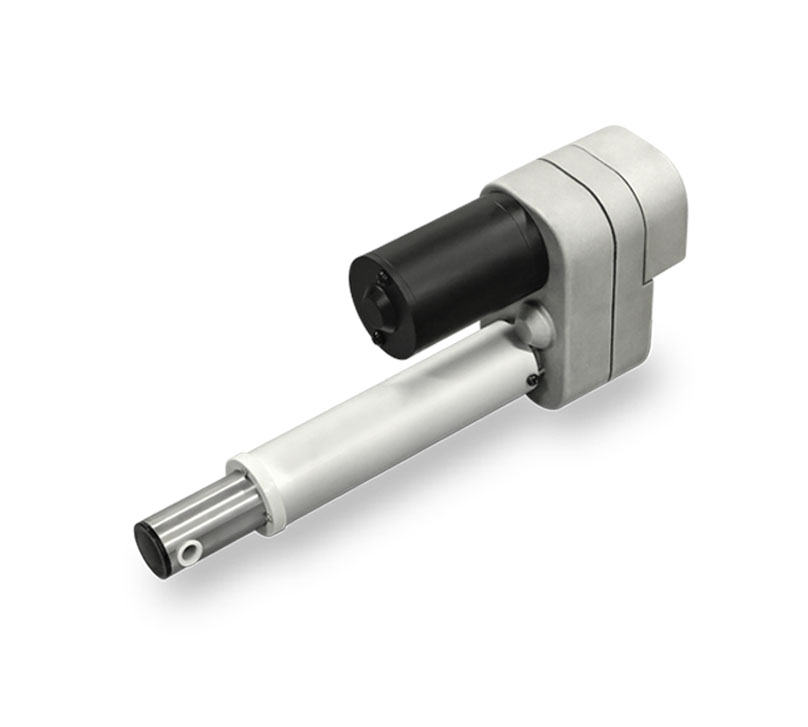

LD60
Max. thrust: 60000N
Max Speed: 8mm/sec
Stroke range: 400mm

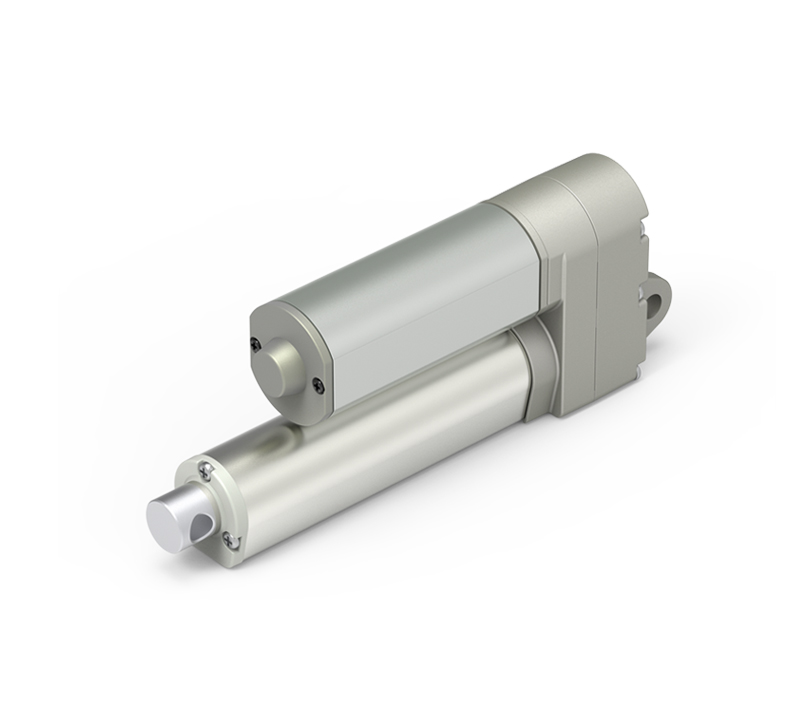

MK32
Max. thrust: 3500N
Max Speed: 26mm/sec
IP level: IPX4,IP66

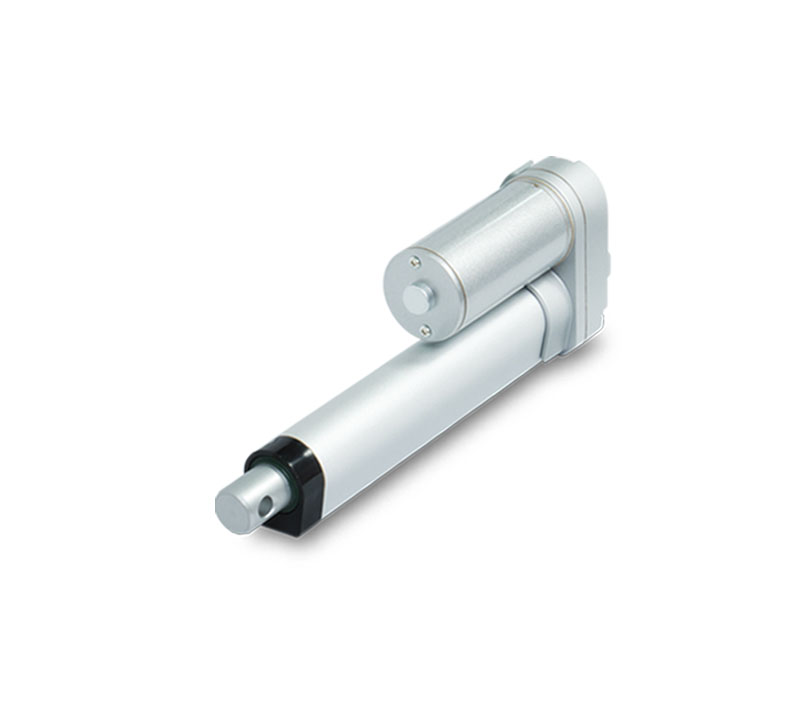

LD3
Max. thrust: 1000N
Max Speed: 43.9mm/sec
IP level: IP65

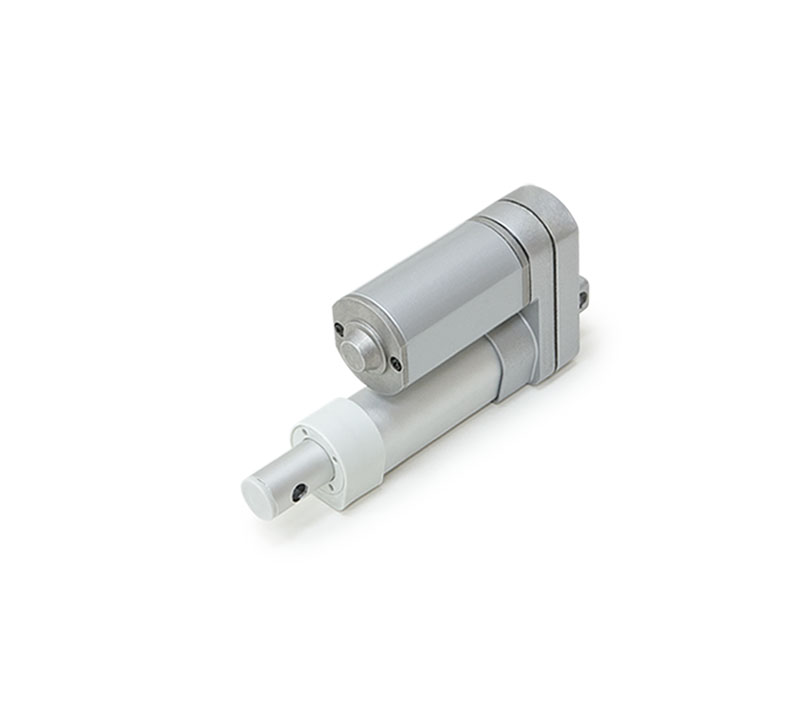

MD10
Max. thrust: 1000N
Max Speed: 36mm/sec
IP level: IPX5

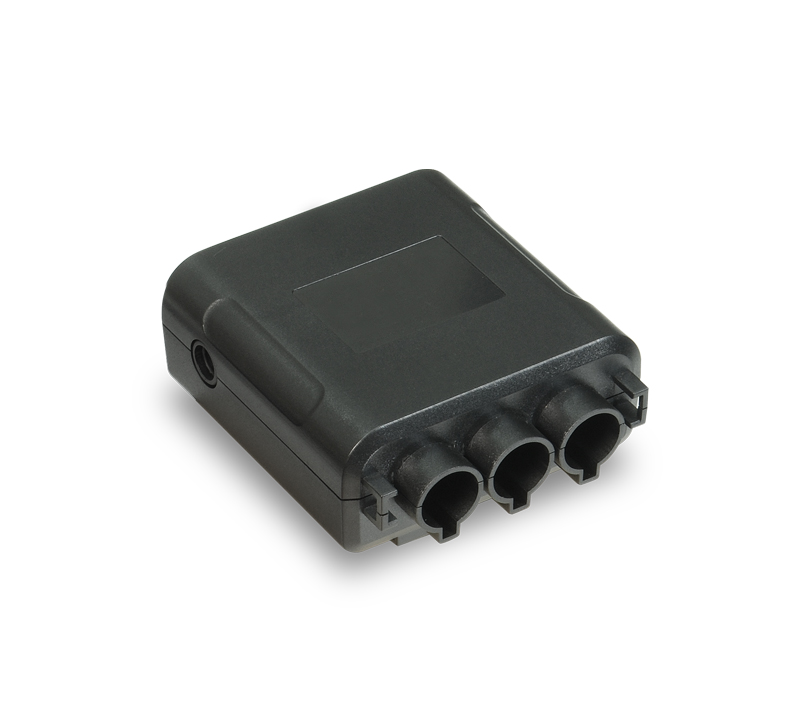

CS1
Input: 29V DC
IP level: IP42
Max. number of actuators: 2 channels

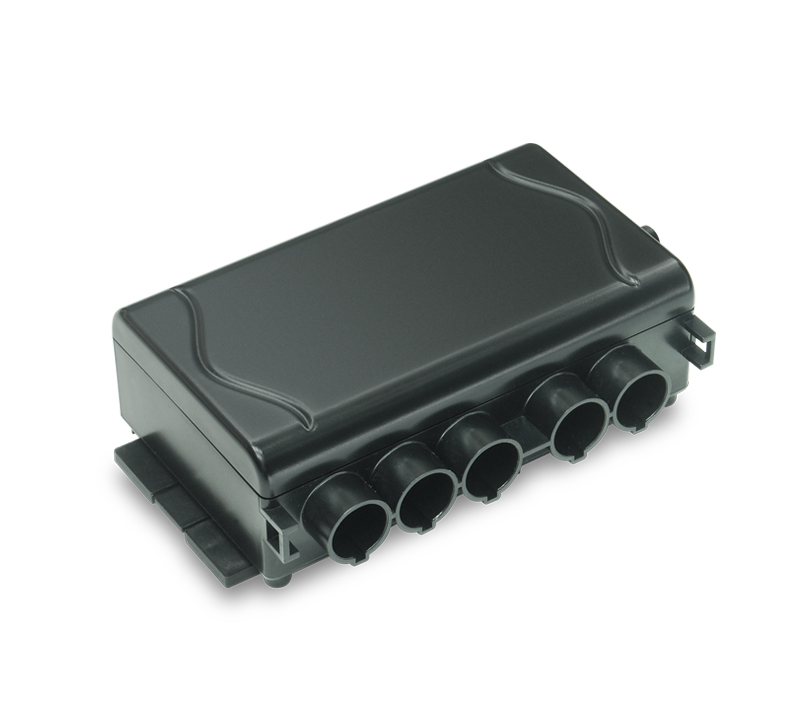

CS2
Input: 29V DC
IP level: IP42
Max. number of actuators: 4 channels

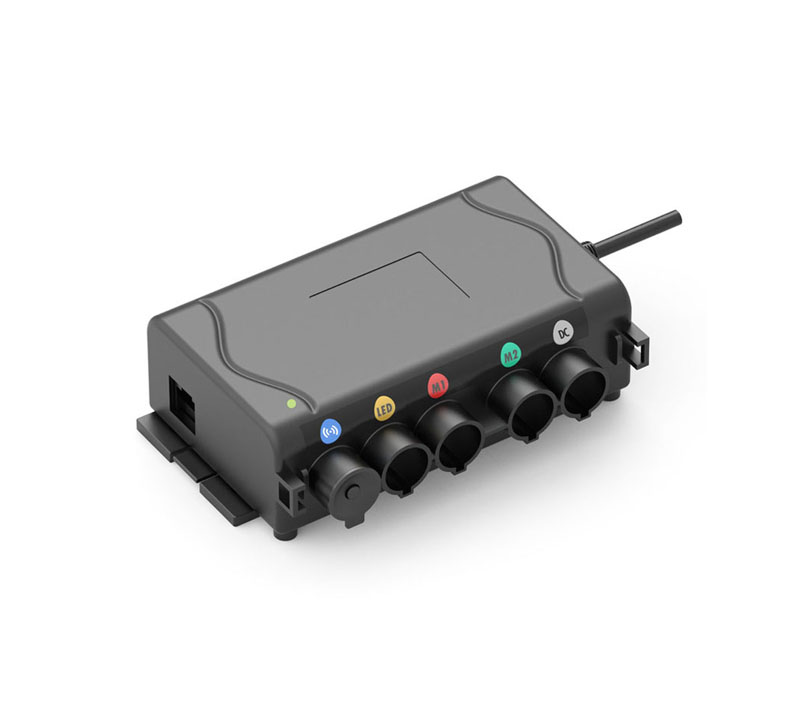

CS2-BT
Input: 29V DC
IP Level: IP42
Number of actuators: 2(Support Joint Movement)

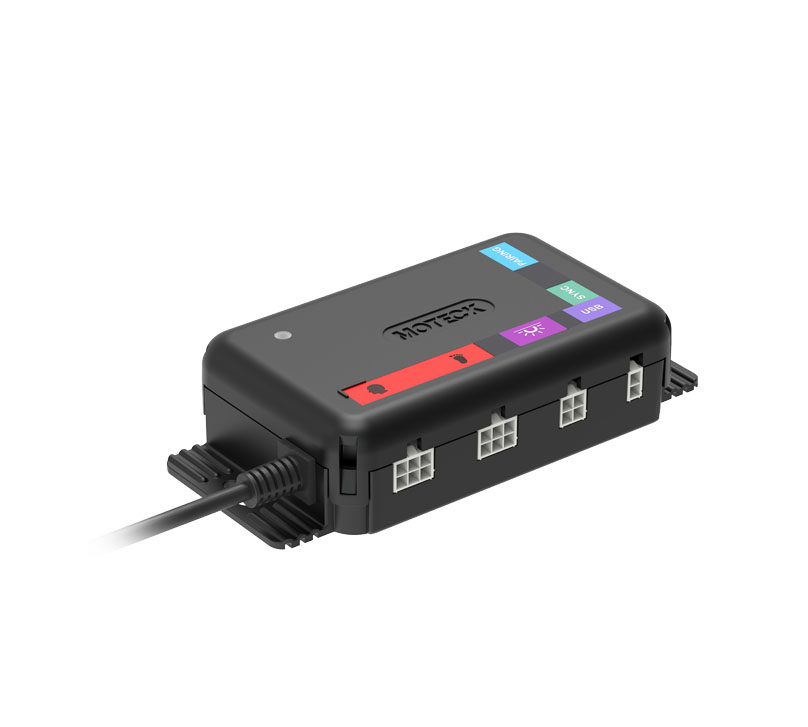

CF32
Input: 29V DC
IP Level: IP42
Number of actuators: 2(Support Joint Movement)

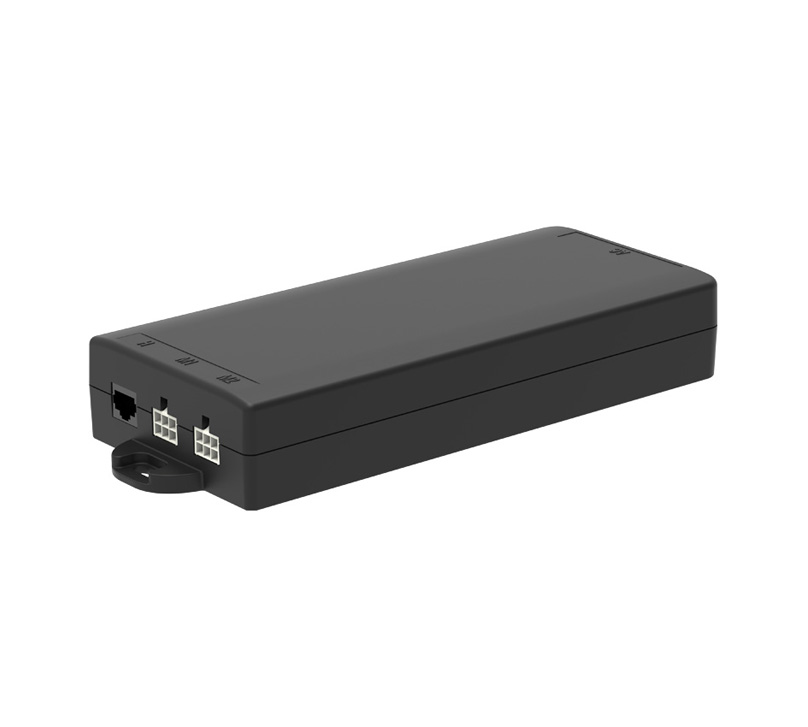

CF11H
Max. 2 channels
SMPS 29V DC output
Analog control
CH12H
Max. 2 channels
SMPS 29V DC output
Analog control

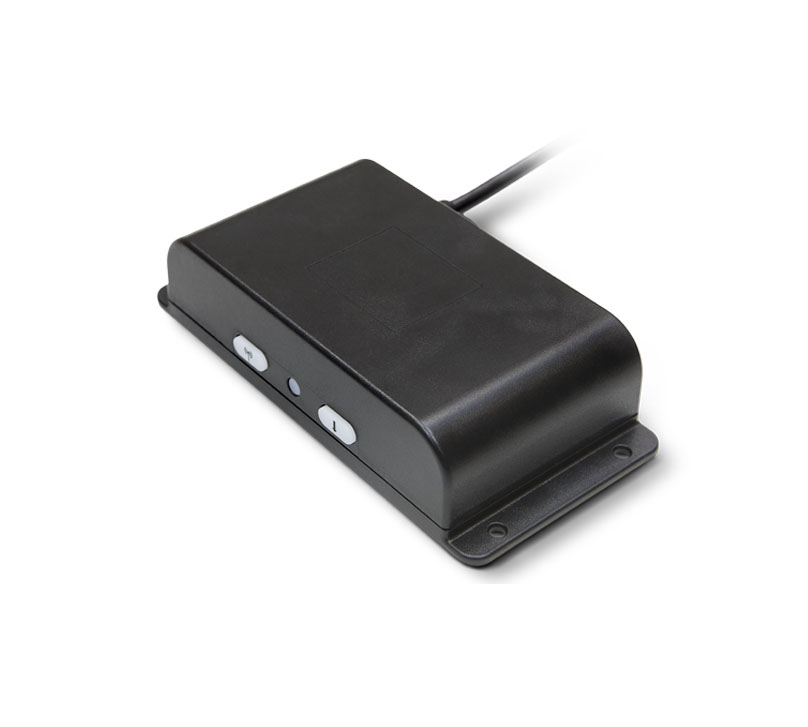

TX2A
Max. 1 channels
Input/output: 29V DC
RF 2.4GHz wireless control

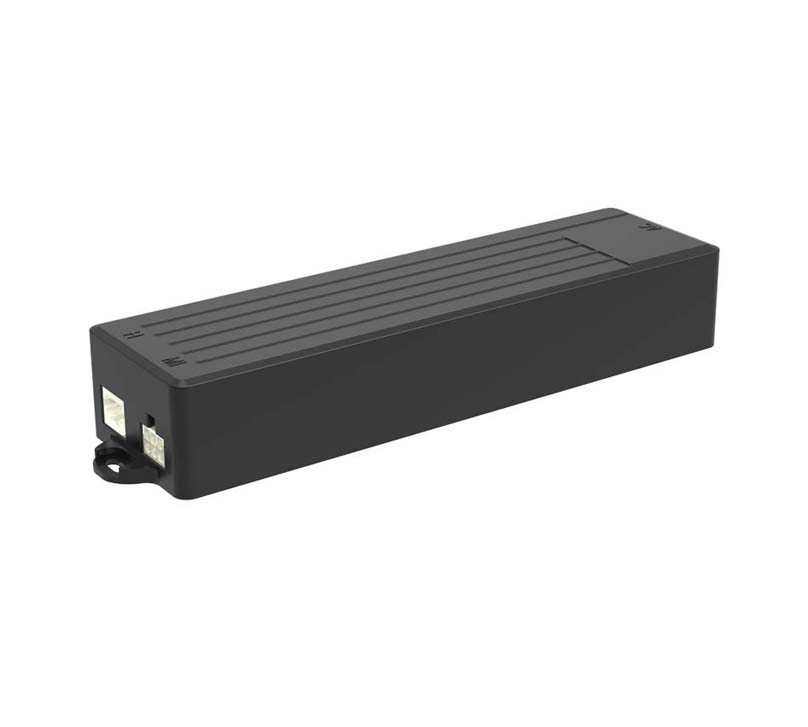

CF13
Max. 1 channel
SMPS 29V DC output
Support memory function
CF13
Max. 1 channel
SMPS 29V DC output
Support memory function

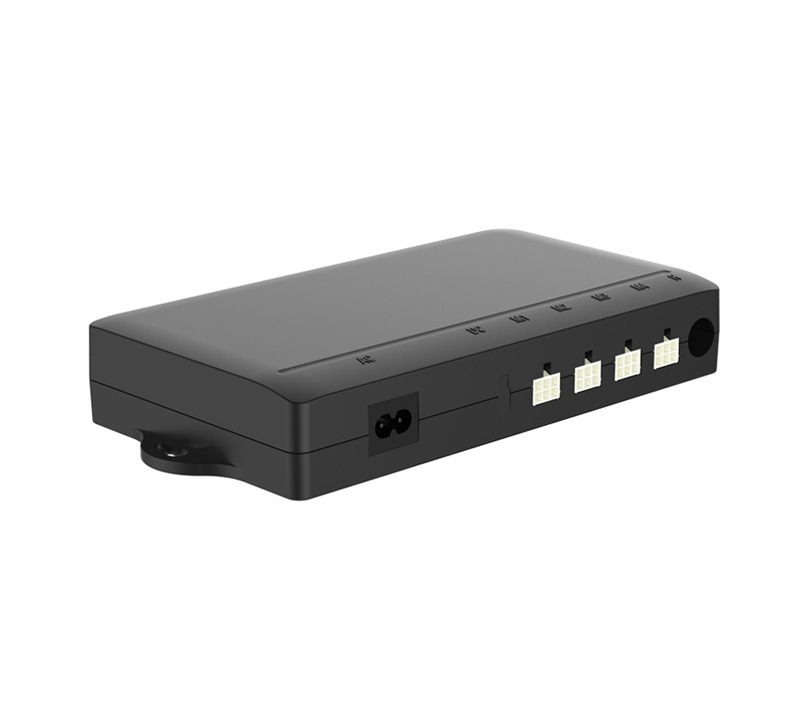

CF12S
Max. 4 channels
SMPS 32V DC output
Programmed functions
CF11
Input:100~240V DC
number of actuator:2
Analog control

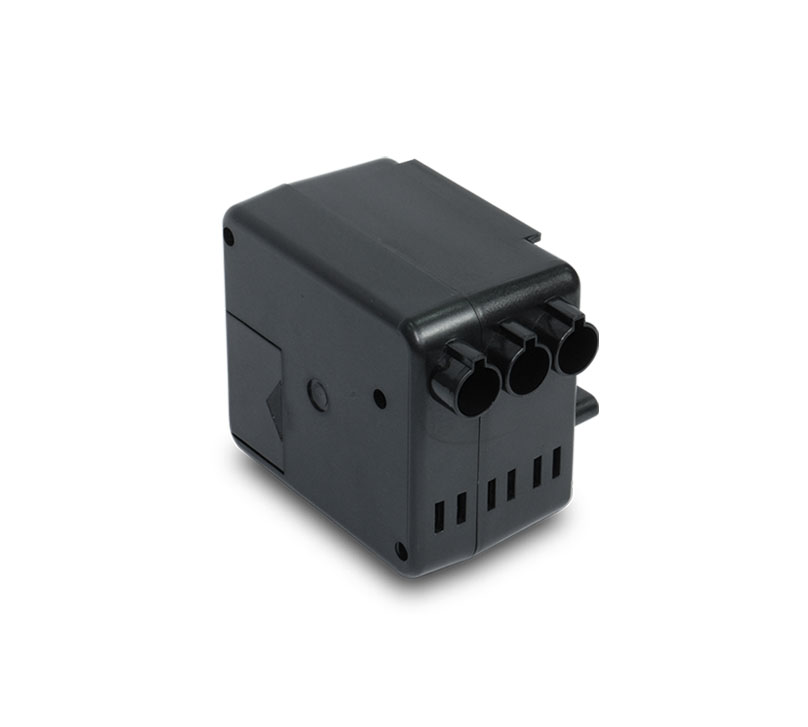

T-control
Max 3 channel
EI transformer or SMPS
Analog control

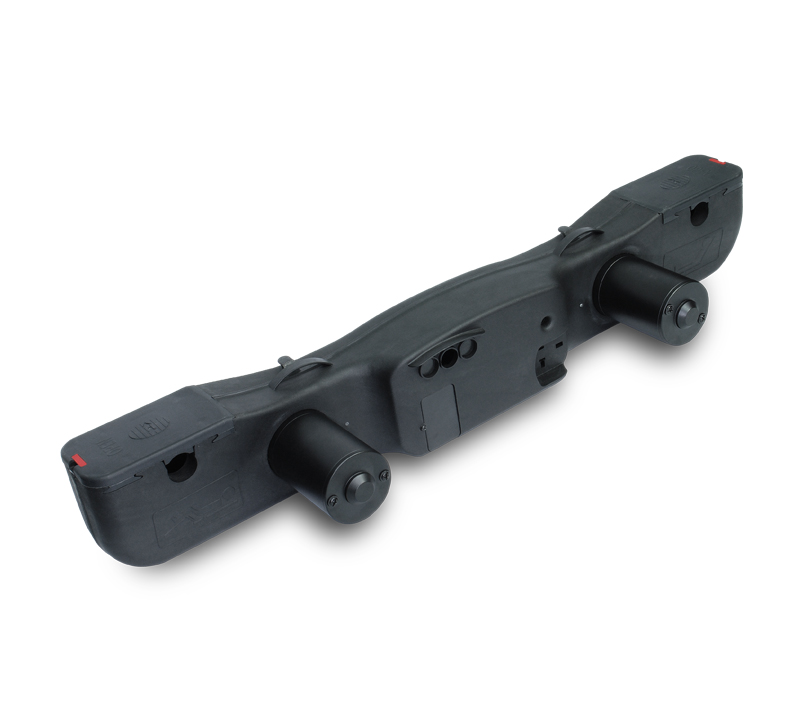

TW61
input:100V AC ~ 240V AC
Max Load:2*6000N
Output:29V DC(SMPS)

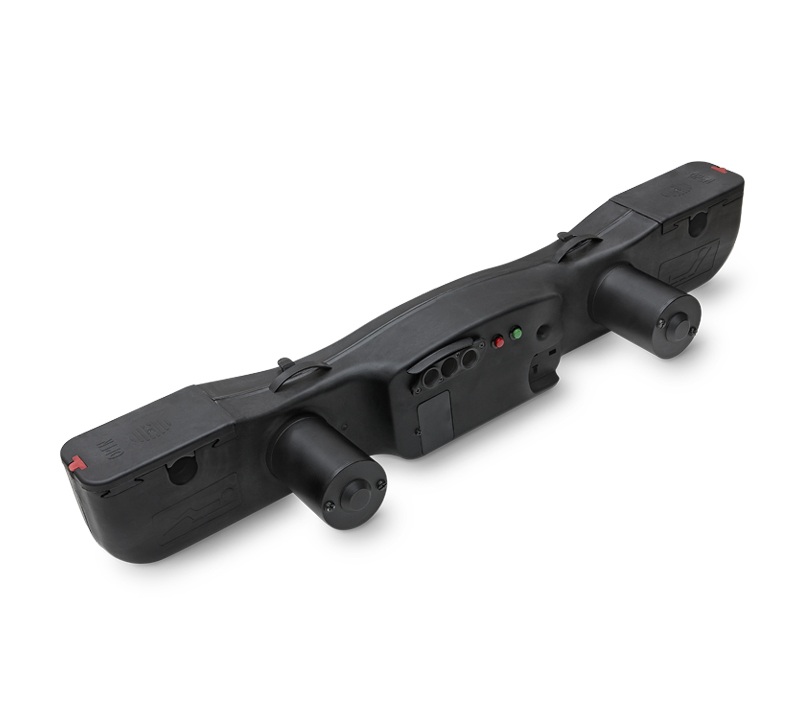

TW61-RMS
input:100 ~ 240V AC
Max Load:2*6000N
Output:29V DC(SMPS)

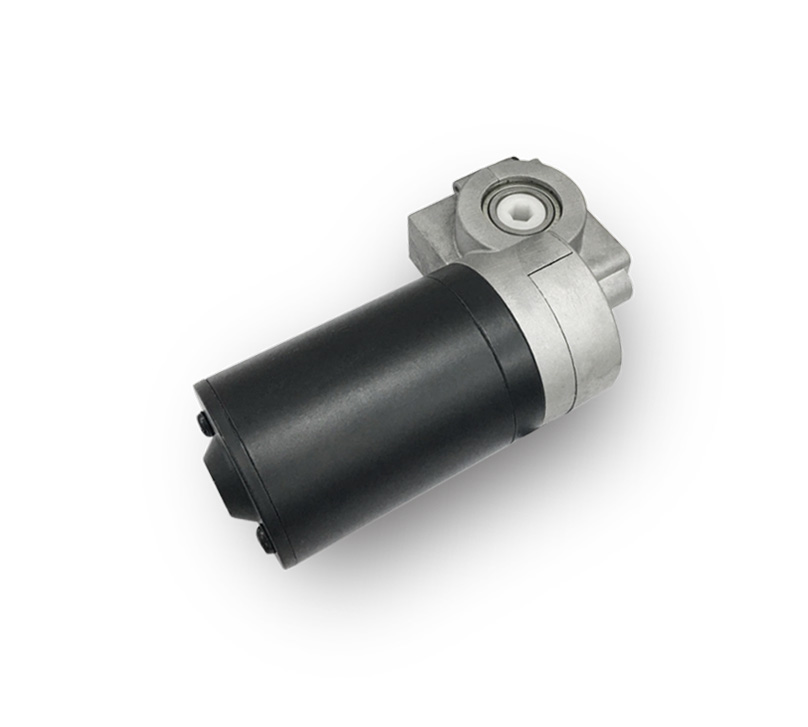

DKM1
Max. torque: 5Nm
Max. speed: 66rpm
Hall signal positioning

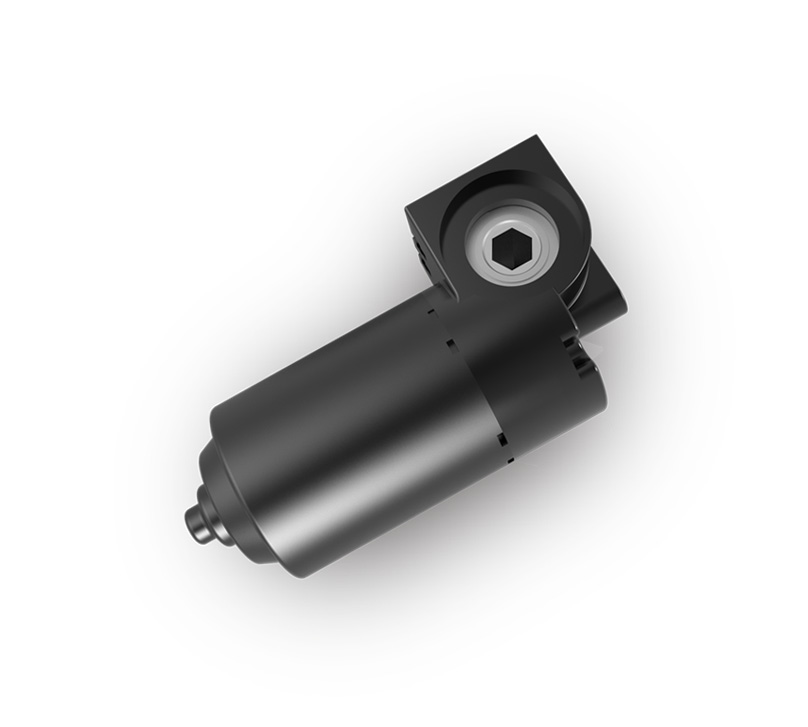

DKM3
Max. torque: 5Nm
Max. speed: 62rpm
Hall signal positioning

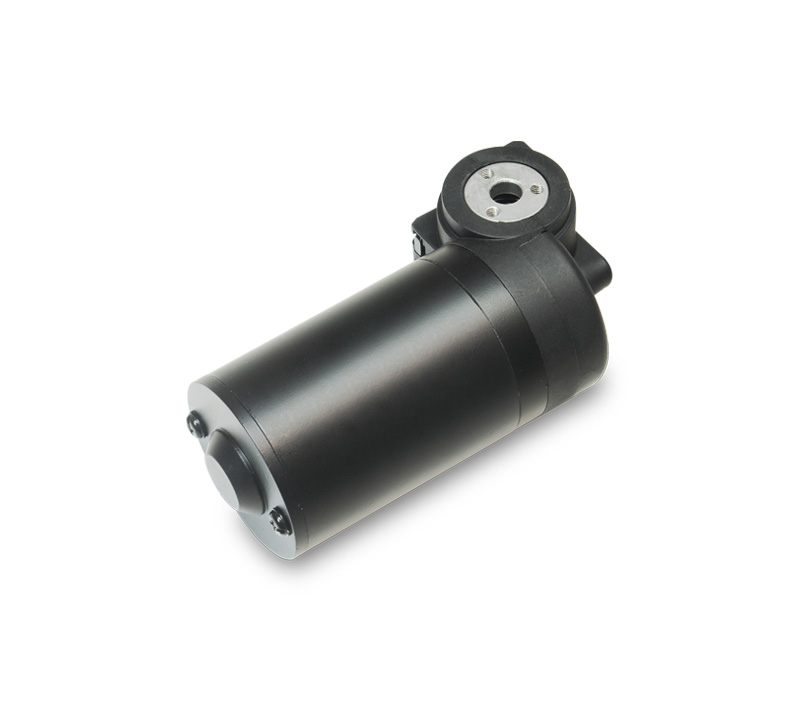

DKM4-LF
Max. torque: 7Nm
Max. speed: 110rpm
Hall signal positioning

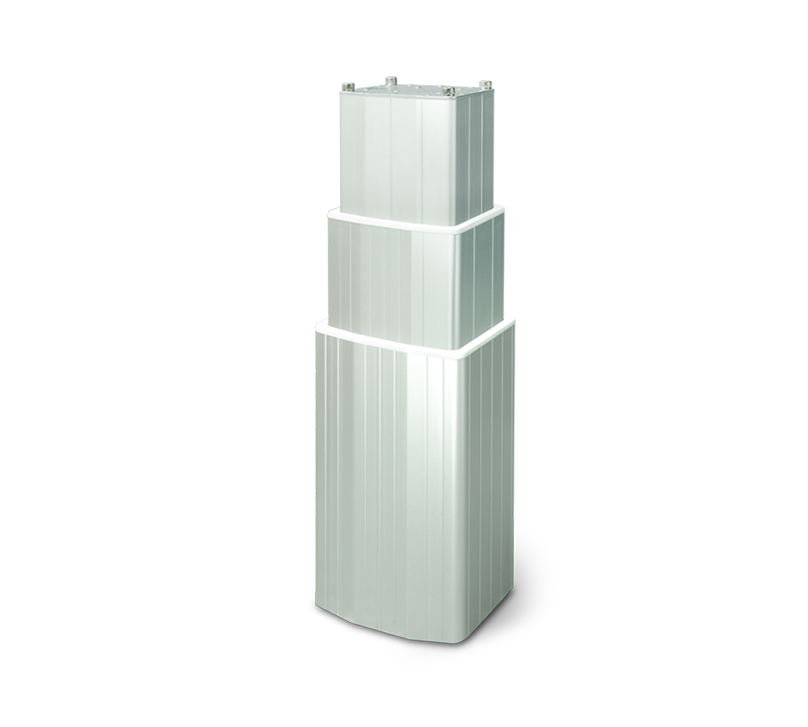

DCL1
Rectangular 175 x 139mm
3-stage
Max. thrust: 2000N

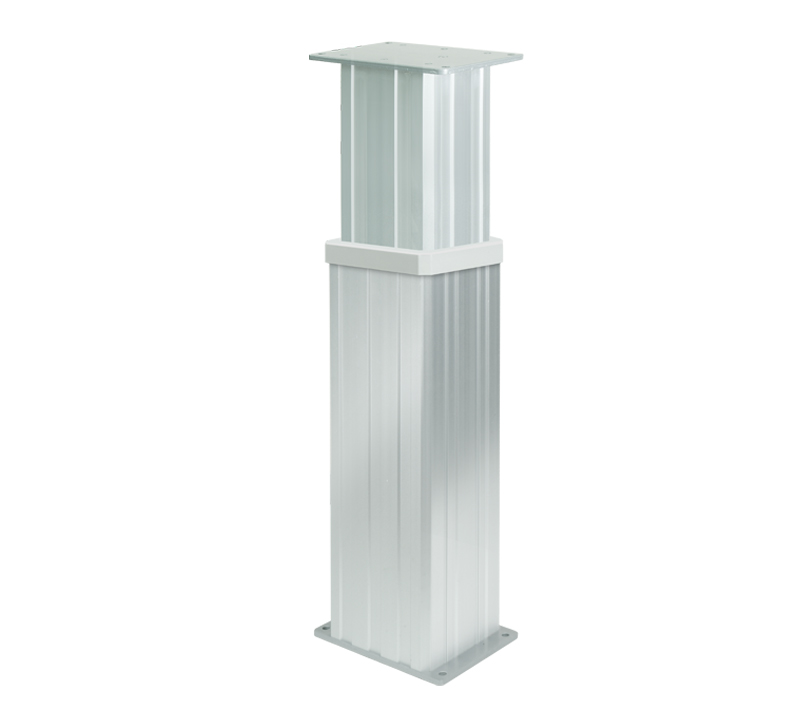

DCL2
Rectangular 192 x 165mm
2-stage
Max. thrust: 2000N

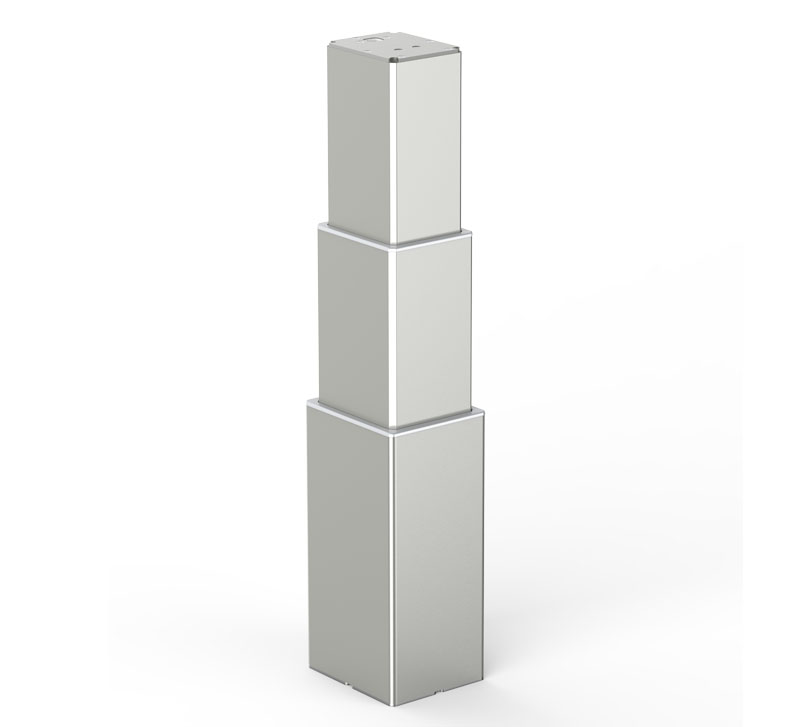

DCL3
3-stage
Max. thrust: 4000N
Digital positioning feedback with Hall effect sensors x 2
Furniture actuators provide smooth and reliable motion control for applications such as recliners, adjustable beds, and height-adjustable desks. Designed for quiet operation and compact integration, they enhance comfort, convenience, and modern automation in residential and commercial furniture.
