Electric Actuator for stepper motor drive

▪ Electric gripper having mounting compatibilities

▪ A variety of workpieces can be handled with multi positioning

▪ spped and gripping force can be manage

▪ The actuator has a built-in motor that allows for arbitrary adjustments of acceleration/deceleration

▪ eliminating the need for a shock absorber.

▪ A table type actuator with short stroke.

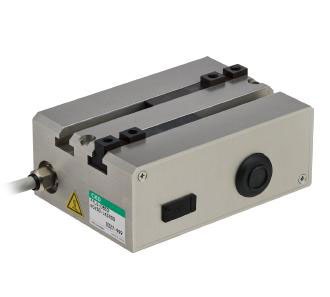

▪ A electric gripper with long stroke and thin type which best fits the robot's tip.

▪ gripping position allows you to grip a wide variety of workpieces without changing extended tools.

strokes : 100mm (one-sided 50mm), 140mm (one-sided 70mm), 160 (one-sided 80)

Maximum gripping force : 500N (one side)

Mass : 1.2~2.5kg

▪ With an expanded network compatibility, even the highly in demand EtherNet/IP is supported.

ECG-A : Slider type EBS-G Series, Rod with built-in guide EBR-G Series

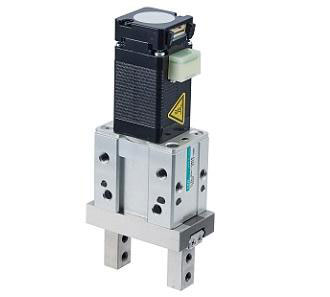

ECG-B : 2-Finger Gripper FLSH-G Series, Table type FLCR-G Series, Rotary type FGRC-G Series

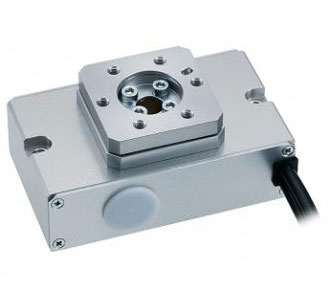

▪ It is a rotary type electric actuator which supports operations like multipoint positioning of the table and reverse operation of the held workpiece

▪A batteryless absolute encoder can be installed, position information is retained even during an emergency stop.

▪ At maintenance, To lubricate all parts at once the greasing port is used.

▪[Supported controllers]

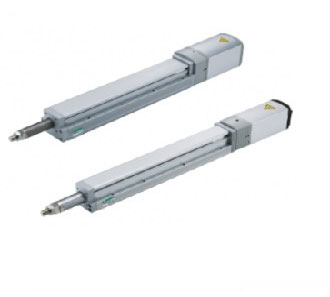

EBR-M : ECR

EBR-G : ECG

▪ A batteryless absolute encoder can be installed, position information is retained even during an emergency stop.

▪ At maintenance, To lubricate all parts at once the greasing port is used.

▪ [Supported controllers]

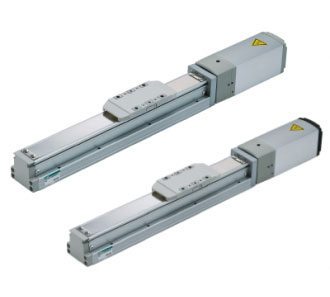

EBS-M: ECR

EBS-G: ECG

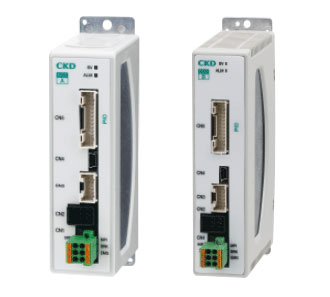

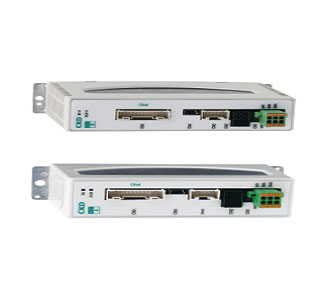

▪ It is a controller for stepping motor drives. One controller system contributing to man-hour and inventory reduction.
