Oiles Fiberflon FW - Multi-layer polytetrafluoroethylene plastic bearings

On the friction surfaces of the Oiles Fiberflon FW series, polytetrafluoroethylene (PTFE) fibres and new-material fibres are used. The load-bearing back layer is made of a high-strength epoxy resin reinforced with glass fibres.

Features

Suitable for use without the need for lubrication. Provides superior performance in high-load, low-speed environments.
Allows for abrasive friction conditions. Also applicable in fretting sliding conditions.
Has excellent chemical resistance.
The Food Sanitation Act is followed.
The standard products come in a variety of sizes.

Service Range

Lubrication condition	Dry
Service temperature range °C	-40～+120
Allowable max. pressure P N/mm²	100
Allowable max. velocity V m/s	0.15
Allowable max. PV value N/mm² * m/s	1.2

Mechanical properties

Tensile strength	JIS K 6911	N/mm²	340
Compressive strength	JIS K 6911	N/mm²	255
Radial crushing strength	JIS Z 2507	N/mm²	165
Co-efficient of linear expansion	ASTM D 696	X 10¯⁵ °C¯¹	2～4
Hardness	JIS K 6911	HRM	80

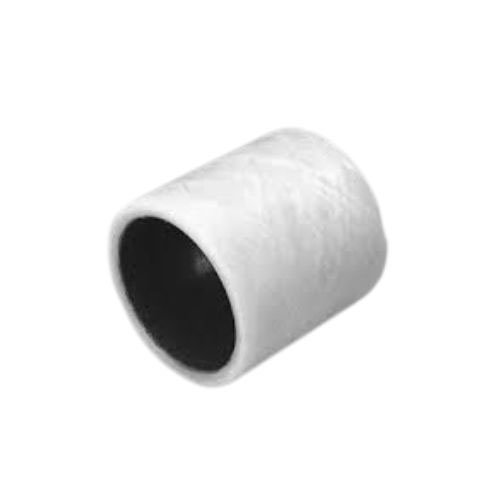

Oiles fiberflon FW bushings FFB

Oiles Fiberflon FW Bushings FFB
