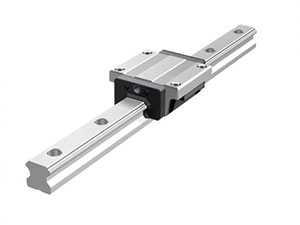

THK LM Guide Full Ball Type

Global standard size HSR

THK Model HSR in linear Guideways; rated loads applied to the LM block are uniform in four directions as a result of allowing the LM Guide to be used in all orientations due to each row of balls being placed at 45 degrees. In addition model, HSR achieves highly accurate, stable straight motion, high rigidity, low friction coefficient, self-adjustment capability, high durability and stainless steel type also available.

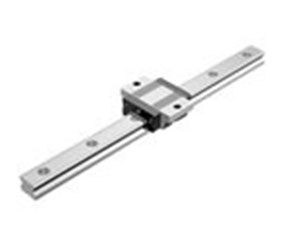

LM Guide Radial Type SR

THK Radial Type Model SR is designed compactly with low sectional height and high rigidity design of LM Block, LM Guideways Model SR achieves highly accurate and stable straight motion. The Model has some important features including compact, Heavy load, mounting accuracy that can easily be achieved, low noise, high durability and stainless steel type also available.

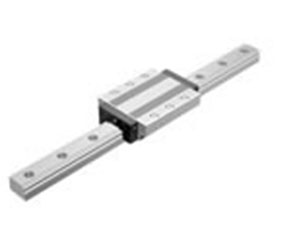

Ultra heavy Load type for Machine Tools Model NRS-X

THK Model Ultra Heavy Load NRS-X for machine tool is capable of bearing Ultra-heavy loads, the model is designed in a way that to allows high rigidity, high vibration impact resistance, and improved damping capacity which does not affect the service life.

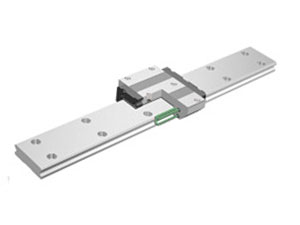

Wide Rail HRW

THK Wide Rail Model HRW is a compact designed model and enables Linear Guideways to be used in all orientations by placing each row of balls at an angle of 45 degrees so that rated loads are uniform in the four directions on LM Block. Due to preload capacity, it increases rigidity in four directions while maintaining a low friction coefficient. This model has the self-adjustment capability to achieve highly accurate and smooth straight motion.

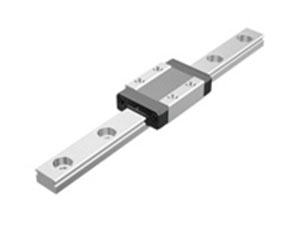

Miniature Types Model RSR2

THK LM Guide miniature type model RSR2 is designed in order to receive loads in all directions. In addition, LM Block is planned to be fitted in limited space with high rigidity and combination with large-diameter balls to get high rigidity in all directions. Stainless steel type also available in LM Block, LM Rail and Balls.

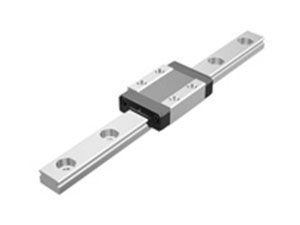

Miniature Types Model RSR

THK LM Guide miniature type model RSR is designed in order to receive loads in all directions. In addition, LM Block is planned to be fitted in limited space with high rigidity and combination with large-diameter balls to get high rigidity in all directions. Stainless steel type also available in LM Block, LM Rail and Balls.

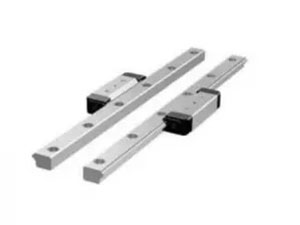

Separate Type (4-way Equal Load) Model HR

THK Model HR in LM Guide full ball type wherein two LM rails are combined with LM Block on the same plane as a result of stable linear guide mechanism is achieved. The Model Separate type model HR is achieve more accuracy and easy for installation than cross-roller guides, self-adjustment capabilities, 4-way equal load, sectional dimensions approximate to cross-roller guides and stainless steel type also available in LM Block, LM Rail and Balls.

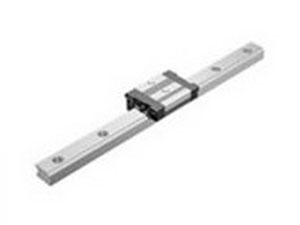

Separate Type (Radial) Model GSR

THK LM Guide Separate type (radial) model GSR is designed in order to achieve high accuracy and for industrial machinery. In this model, LM Rail and LM Block are interchangeable properties and can be stored separately. The Model GSR is compactly designed and has a low centre of gravity structure with a low overall height. The special feature is to be capable of receiving a load in any direction.

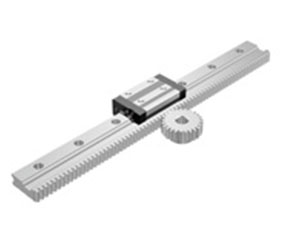

LM Guide Separate Type GSR-R

THK LM Guide Separate Type Model GSR-R has rack teeth on LM Rail in order to facilitate the design and assembly of the drive mechanism, reduced machining & assembly costs, easy designing, Space-saving, Long stroke and high durability.

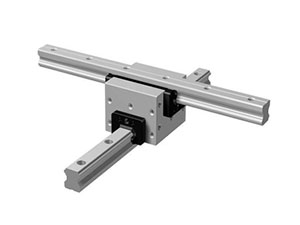

Cross LM Guide CSR

THK Cross LM Guide Model CSR is a combination of two LM Rails as a result of orthogonality is achieved at extremely high accuracy and rated applied loads to LM Block are uniform in four directions to enable Linear Guideways to be used in all orientations by placing each row of the ball at 45 degrees, achieved high rigidity.

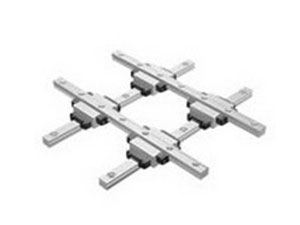

Miniature Cross Guide MX

THK LM Guide miniature cross guide Model MX is a combination of two LM guides and is capable of receiving loads in all directions in order to be used Linear Guideways in all orientations. This model is compactly designed to get high positional accuracy and high torsional rigidity.

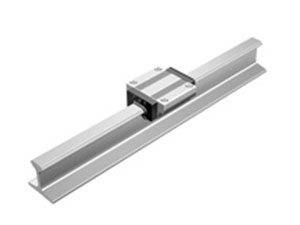

Structural Member Rail JR

THK LM Guide Structural Member rail Model JR is enabling the LM Guide to be used in all orientations due to Each row of Balls is placed at 45 degrees and rated loads applied to LM Block are uniform in all four directions and can be mounted even under rough conditions, sectional shape with high flexural rigidity.

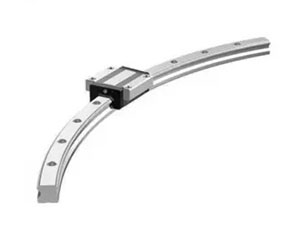

R Guide HCR

THK LM Guide R Guide Model HCR is a new concept product in order to allow highly accurate circular motion, shortened assembly time, freedom of design, allow circular motion of 5m or longer and capable of receiving loads in all directions.

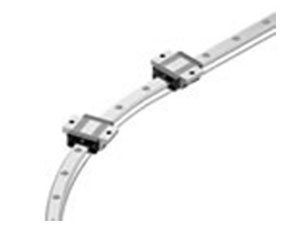

Straight- Curved Guide HMG

THK straight-curved Guide HMG is newly designed for LM block that continuously moves straight and curved rails by combining the two LM guide HSR and R Guide HCR, it has some important features including freedom of design, straight-curved sales, Shortened Transportation time and cost reduction through a simplified mechanism.

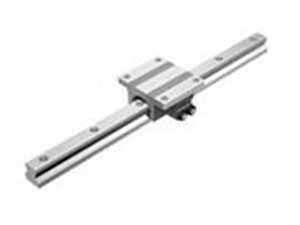

Self- Aligning NSR-TBC

THK LM Guide Self-aligning type Model NSR-TBC is the only linear guideways consisting of two pieces instead of a single-piece of LM Block in order to be capable of receiving loads in all directions and easy installation and accuracy establishment.

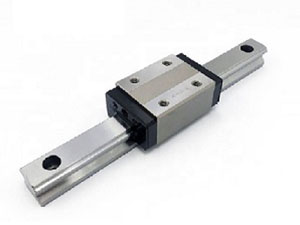

High Temperature Type Model HSR-M1

THK LM Guide high-temperature type model HSR-M1 is designed in order to be capable of being used in unusual service temperatures up to 150 degrees, Highly corrosion resistant, Dimensional stability and uses high-temperature grease for grease based fluctuation in rolling resistance which changes temperature level from Low to High.

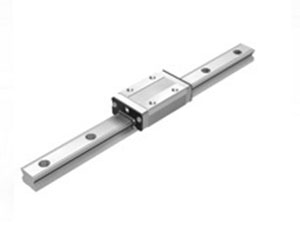

High Temperature Type Model SR-M1

THK LM Guide high-temperature type model SR-M1 is designed in order to be capable of being used in unusual service temperatures up to 150 degrees, Highly corrosion resistant, Dimensional stability and uses high-temperature grease for grease based fluctuation in rolling resistance which changes temperature level from Low to High.

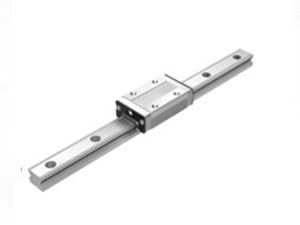

High Temperature Type Model RSR-M1

THK LM Guide high-temperature type model RSR-M1 is designed in order to be capable of being used in unusual service temperatures up to 150 degrees, Highly corrosion resistant, Dimensional stability and uses high-temperature grease for grease based fluctuation in rolling resistance which changes temperature level from Low to High.

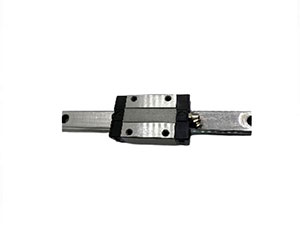

High Corrosion Resistance Type Model HSR-M2

THK Model LM Guide High Corrosion Resistance Type Model HSR-M2 in which LM Block, LM Rail and Balls are made of highly corrosion-resistant stainless steel and other metal parts are made of stainless steel in order to allow superb corrosion resistance to be achieved.

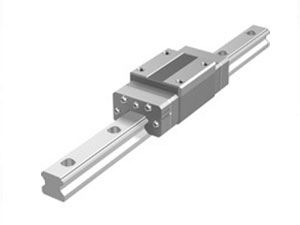

For Medium-to-low Vacuum HSR-M1VV

THK Lm Guide Medium-to-low vacuum type model HSR-M1VV is capable of sustain in various environments and capable of withstanding baking temperature. Also uses of grease designed for medium to low vacuum achieves a stable rolling resistance.

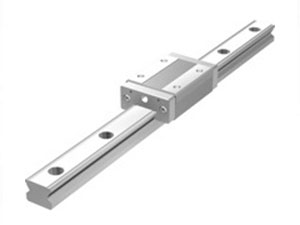

Oil-Free for special enviroments Model SR-MS

THK Oil-free special environments model SR-MS uses stainless steel wherein all components are composed of parts for special environments, the special solvent is used to de-grease this model, using highly reliable dry lubricant S-compound film for a ball to achieve grease-free lubrication, low friction, long service life and low dust generation.
