    • Human Machine Interface(HMI)

    HMIs are engineered not as standalone components, but as the central nervous system for HCFA-driven machinery, offering operators intuitive touchscreen control, real-time system monitoring, and streamlined data visualization. This native integration between drive and interface ensures superior performance, reduces integration complexity, and delivers a cohesive, reliable user experience that boosts operational efficiency across the factory floor.

    V304E Series HMIs

    • Supports RS232/485/422 serial communication
    • Support Ethernet communication, program download
    • Support USB program download
    • Program local and remote penetration, faster programming
    • Random passwords and installment passwords allow sales machines to operate freely

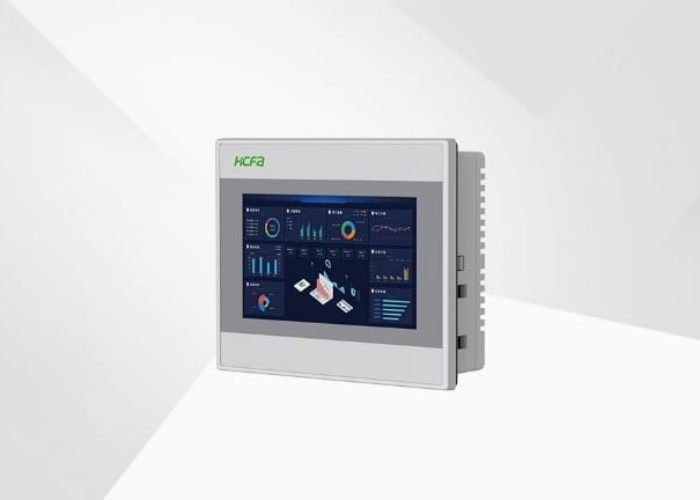

    V304E-HMI
    Technical Specification
    Model Name
    V304E
    Display size 4.3"
    Display Viewing angle
    (T/B/L/R)    		 (85/85/85/85)
    Resolution 480*272
    Brightness(cd/m2) 350
    Contrast 400:1
    Backlight life(hours) 30,000
    Color 16.7M
    Touch Screen 4 wire industrial resistive touch screen
    Processor CPU ARM Cortex-A7
    Dual core 1.2Ghz
    FLASH/RAM 128M/128M
    I/O Port Ethernet port 10M/100M adaptive network port*1
    USB Host USB 2.0*1
    Serial interface COM1:RS485
    COM2:RS422/485
    COM3:RS232
    RTC Supported
    Buzzer Supported
    IOT WIFI4G Not supported
    Electrical specifications Rated power 2.4W
    Rated voltage DC24V(-15% ~20%)
    Power protection with lightening surge protection
    Power failure allowed < 5ms>
    CE Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards
    RoHS Comply with RoHS lightening surge ±2KV;
    electrostatic contact 4KV, air discharge 8KV
    Protection Level Front panel IP65, rear shell IP20, in compliance with national standard GB/T 4208
    Vibration resistance 5~150Hz(X/Y/Z directions, 1g/3.5mm displacement)
    ambient temprature 0~55°C
    Storage temprature -25~70°C(No condensation)
    Relative temprature 10%~95%(No condensation)
    Certification CE ✓
    ATEX ✗
    UL ✗
    Specifications Mechanical structure Engineering plastics
    Installation Panel embedded installation
    Cutout size 119.00*93.00
    Model size 128.00*102.00*35.20
    Weight 285
    Software HC Touch VPro
    Download method Network port/USB
    V300 Series HMI
    Models
    Specifiations
    V304E 4.3" standard version, supports Ethernet, 3-ch serial communication, does not support 4G/WIFI function
    V307S 7" basic version, supports Ethernet, 1-ch serial port communication, supports WIFI/4G expansion
    V310S 10.1" basic version, supports Ethernet, 1-ch serial port communication, supports WIFI/4G expansion
    V310E 10.1" standard version, supports Ethernet, 3-ch serial communication, supports WIFI/4G expansion
    V315E 15.6" standard version, supports Ethernet, 3-ch serial communication, does not support 4G/WIFI function
    V315E-4G 15.6" 4G version, supports Ethernet, 3-ch serial communication, and come with 4G communication function
    V315E-WIFI 15.6" WiFi version, supports Ethernet, 3-ch serial communication, and come with WiFi communication function

    V300 Series Remote Operation and Maintenance Large Screen Configuration HMI
    Model Name
    Specifications

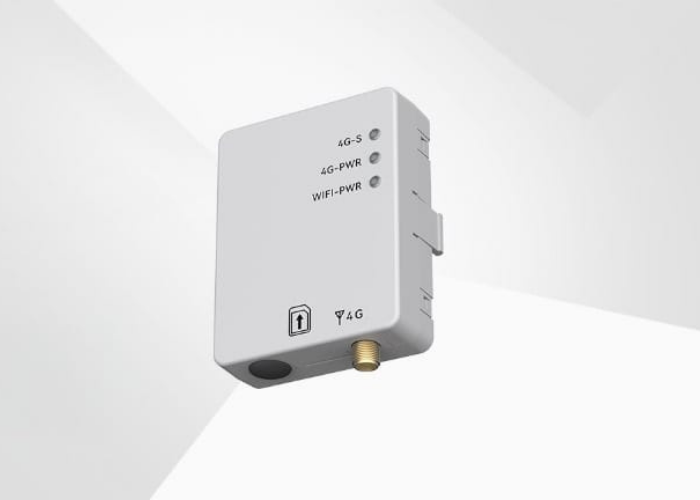

    V300-4G-ADP V300 series 4G expansion module, only for 7" and 10" HMI

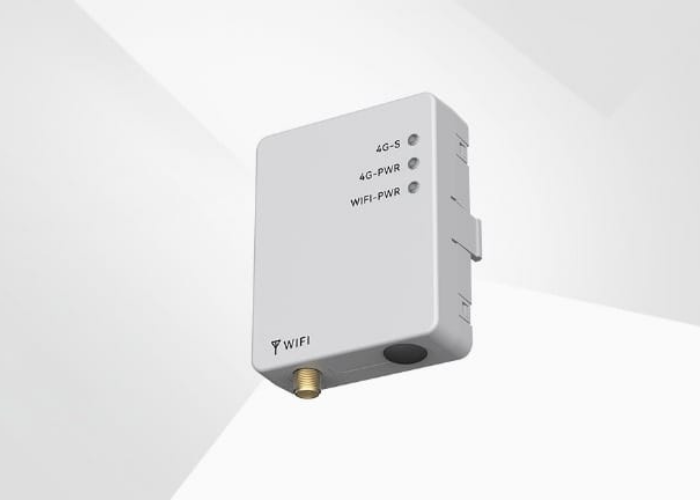

    V300-WIFI-ADP V300 series WiFi expansion module, only for 7" and 10" HMI

    V300 Series Expansion Module
    Model Name
    Specifications
    VT-HDX-4G HDMI display, 3 network ports, 3 serial ports, support 4G/WAN networking
    VT-HDX-WIFI HDMI display, 3 network ports, 3 serial ports, support WiFi/WAN networking

    V307E Series HMIs

    • Supports RS232/485/422 serial communication
    • Support Ethernet communication, program download
    • Support USB program download
    • Supports WIFI/4G
    • Mobile/Telecom/Unicom, more convenient networking
    • Cloud based data monitoring and maintenance

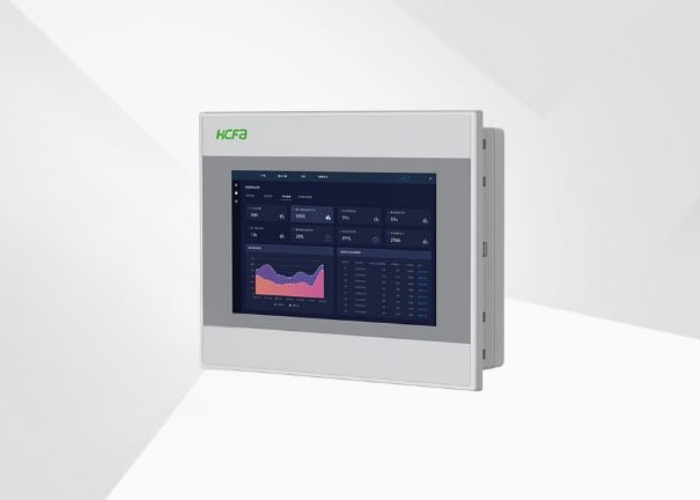

    V307E-Series Human machine interface
    Technical Specification
    Model Name
    V307S
    V304E
    Display size 7" 7"
    Display Viewing angle
    (T/B/L/R)    		 (60/70/70/70) (60/70/70/70)
    Resolution 800*480 800*480
    Brightness(cd/m2) 400 400
    Contrast 400:1 400:1
    Backlight life(hours) 50,000 50,000
    Color 16.7M 16.7M
    Touch Screen 4 wire industrial resistive touch screen
    Processor CPU ARM Cortex-A7
    Dual core 1.2Ghz
    FLASH/RAM 128M/128M
    I/O Port Ethernet port 10M/100M adaptive network port*1
    USB Host USB 2.0*1
    Serial interface COM1:RS485 COM1:RS485
    COM2:RS422/485
    COM3:RS232
    RTC Supported
    Buzzer Supported
    IOT WIFI4G Optional
    Electrical specifications Rated power 4.8W 4.8W
    Rated voltage DC24V(-15% ~20%)
    Power protection with lightening surge protection
    Power failure allowed < 5ms>
    CE Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards
    RoHS Comply with RoHS lightening surge ±500V, group pulse ±2KV;
    electrostatic contact 4KV, air discharge 8KV
    Protection Level Front panel IP65, rear shell IP20, in compliance with national standard GB/T 4208
    Vibration resistance 5~150Hz(X/Y/Z directions, 1g/3.5mm displacement)
    ambient temprature 0~55°C
    Storage temprature -25~70°C(No condensation)
    Relative temprature 10%~95%(No condensation)
    Certification CE ✓
    ATEX ✗
    UL ✗
    Specifications Mechanical structure Engineering plastics
    Installation Panel embedded installation
    Cutout size 193.00*139.00 193.00*139.00
    Model size 210.00*156.00*42.20 210.00*156.00*42.20
    Weight 642 642
    Software HC Touch VPro
    Download method Network port/USB
    V300 Series HMI
    Models
    Specifiations
    V304E 4.3" standard version, supports Ethernet, 3-ch serial communication, does not support 4G/WIFI function
    V307S 7" basic version, supports Ethernet, 1-ch serial port communication, supports WIFI/4G expansion
    V307E 7" standard version, supports Ethernet,3-ch serial port communication, supports WIFI/4G expansion
    V310S 10.1" basic version, supports Ethernet, 1-ch serial port communication, supports WIFI/4G expansion
    V310E 10.1" standard version, supports Ethernet, 3-ch serial communication, supports WIFI/4G expansion
    V315E 15.6" standard version, supports Ethernet, 3-ch serial communication, does not support 4G/WIFI function
    V315E-4G 15.6" 4G version, supports Ethernet, 3-ch serial communication, and come with 4G communication function
    V315E-WIFI 15.6" WiFi version, supports Ethernet, 3-ch serial communication, and come with WiFi communication function

    V300 Series Remote Operation and Maintenance Large Screen Configuration HMI
    Model Name
    Specifications
    V300-4G-ADP V300 series 4G expansion module, only for 7" and 10" HMI
    V300-WIFI-ADP V300 series WiFi expansion module, only for 7" and 10" HMI

    V300 Series Expansion Module
    Model Name
    Specifications
    VT-HDX-4G HDMI display, 3 network ports, 3 serial ports, support 4G/WAN networking
    VT-HDX-WIFI HDMI display, 3 network ports, 3 serial ports, support WiFi/WAN networking

    V310E Series HMIs

    • Supports RS232/485/422 serial communication
    • Support Ethernet communication, program download
    • Support USB program download
    • Supports WIFI/4G
    • Cloud based data monitoring and maintenance

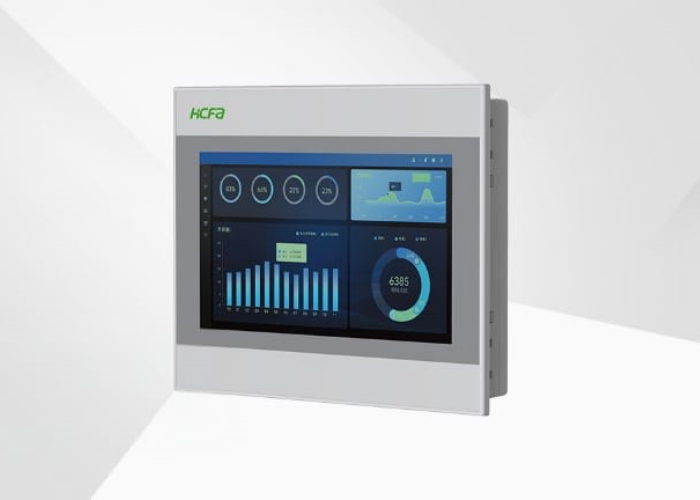

    V310E-Series Human machine interface
    Technical Specification
    Model Name
    V310S
    V310E
    Display size 10.1" 10.1"
    Display Viewing angle
    (T/B/L/R)    		 (60/70/70/70) (60/70/70/70)
    Resolution 1024*600 1024*600
    Brightness(cd/m2) 400 400
    Contrast 400:1 400:1
    Backlight life(hours) 50,000 50,000
    Color 16.7M 16.7M
    Touch Screen 4 wire industrial resistive touch screen
    Processor CPU ARM Cortex-A7
    Dual core 1.2Ghz
    FLASH/RAM 128M/128M
    I/O Port Ethernet port 10M/100M adaptive network port*1
    USB Host USB 2.0*1
    Serial interface COM1:RS485 COM1:RS485
    COM2:RS422/485
    COM3:RS232
    RTC Supported
    Buzzer Supported
    IOT WIFI4G Optional
    Electrical specifications Rated power 7.2W 7.2W
    Rated voltage DC24V(-15% ~20%)
    Power protection with lightening surge protection
    Power failure allowed < 5ms>
    CE Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards
    RoHS Comply with RoHS lightening surge ±500V, group pulse ±2KV;
    electrostatic contact 4KV, air discharge 8KV
    Protection Level Front panel IP65, rear shell IP20, in compliance with national standard GB/T 4208
    Vibration resistance 5~150Hz(X/Y/Z directions, 1g/3.5mm displacement)
    ambient temprature 0~55°C
    Storage temprature -25~70°C(No condensation)
    Relative temprature 10%~95%(No condensation)
    Certification CE ✓
    ATEX ✗
    UL ✗
    Specifications Mechanical structure Engineering plastics
    Installation Panel embedded installation
    Cutout size 259.00*201.00 259.00*201.00
    Model size 276.00*218.00*43.20 276.00*218.00*43.20
    Weight 1095 1095
    Software HC Touch VPro
    Download method Network port/USB
    V300 Series HMI
    Models
    Specifiations
    V304E 4.3" standard version, supports Ethernet, 3-ch serial communication, does not support 4G/WIFI function
    V307S 7" basic version, supports Ethernet, 1-ch serial port communication, supports WIFI/4G expansion
    V307E 7" standard version, supports Ethernet,3-ch serial port communication, supports WIFI/4G expansion
    V310S 10.1" basic version, supports Ethernet, 1-ch serial port communication, supports WIFI/4G expansion
    V310E 10.1" standard version, supports Ethernet, 3-ch serial communication, supports WIFI/4G expansion
    V315E 15.6" standard version, supports Ethernet, 3-ch serial communication, does not support 4G/WIFI function
    V315E-4G 15.6" 4G version, supports Ethernet, 3-ch serial communication, and come with 4G communication function
    V315E-WIFI 15.6" WiFi version, supports Ethernet, 3-ch serial communication, and come with WiFi communication function

    V300 Series Remote Operation and Maintenance Large Screen Configuration HMI
    Model Name
    Specifications
    V300-4G-ADP V300 series 4G expansion module, only for 7" and 10" HMI
    V300-WIFI-ADP V300 series WiFi expansion module, only for 7" and 10" HMI

    V300 Series Expansion Module
    Model Name
    Specifications
    VT-HDX-4G HDMI display, 3 network ports, 3 serial ports, support 4G/WAN networking
    VT-HDX-WIFI HDMI display, 3 network ports, 3 serial ports, support WiFi/WAN networking

    V315E Series HMIs

    • Supports RS232/485/422 serial communication
    • Support Ethernet communication, program download
    • Support USB program download
    • Supports WIFI/4G
    • Cloud based data monitoring and maintenance

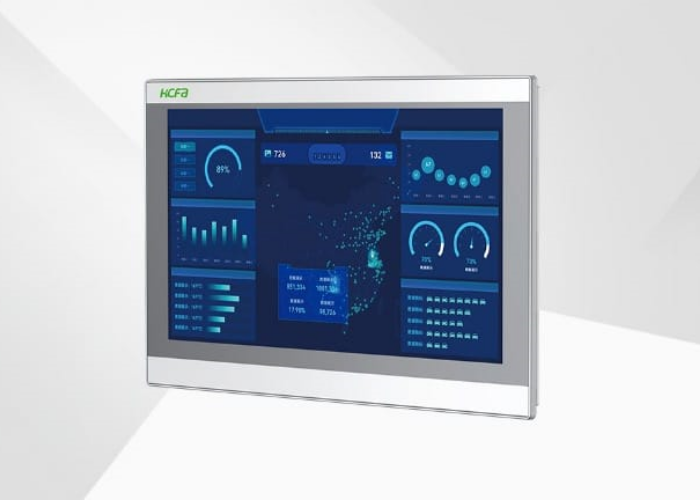

    V315E-Series Human machine interface
    Technical Specification
    Model Name
    V310E
    Display size 15.6"
    Display Viewing angle
    (T/B/L/R)    		 (85/85/85/85)
    Resolution 1920*1080
    Brightness(cd/m2) 300
    Contrast 400:1
    Backlight life(hours) 50,000
    Color 16.7M
    Touch Screen 4 wire industrial resistive touch screen
    Processor CPU ARM Cortex-A53
    Quad core 1.5Ghz
    FLASH/RAM 8GB/1GB
    I/O Port Ethernet port 10M/100M adaptive network port*1
    USB Host USB 2.0*1
    Serial interface COM1:RS485
    COM2:RS422/485
    COM3:RS232
    RTC Supported
    Buzzer Supported
    IOT WIFI4G Optional
    Electrical specifications Rated power 14.4W
    Rated voltage DC24V(-15% ~20%)
    Power protection with lightening surge protection
    Power failure allowed < 5ms>
    CE Comply with EN61000-6-2:2005, EN61000-6-4:2007 standards
    RoHS Comply with RoHS lightening surge ±500V, group pulse ±2KV;
    electrostatic contact 4KV, air discharge 8KV
    Protection Level Front panel IP65, rear shell IP20, in compliance with national standard GB/T 4208
    Vibration resistance 5~150Hz(X/Y/Z directions, 1g/3.5mm displacement)
    ambient temprature 0~55°C
    Storage temprature -25~70°C(No condensation)
    Relative temprature 10%~95%(No condensation)
    Certification CE ✓
    ATEX ✗
    UL ✗
    Specifications Mechanical structure Front panel: PET
    Engineering plastic
    back panel:Metal
    Installation Panel embedded and VESA installation
    Cutout size 384.00*247.00
    Model size 398.10*260.10*35.90
    Weight 2650
    Software HC Touch VPro
    Download method Network port/USB
    V300 Series HMI
    Models
    Specifiations
    V304E 4.3" standard version, supports Ethernet, 3-ch serial communication, does not support 4G/WIFI function
    V307S 7" basic version, supports Ethernet, 1-ch serial port communication, supports WIFI/4G expansion
    V307E 7" standard version, supports Ethernet,3-ch serial port communication, supports WIFI/4G expansion
    V310S 10.1" basic version, supports Ethernet, 1-ch serial port communication, supports WIFI/4G expansion
    V310E 10.1" standard version, supports Ethernet, 3-ch serial communication, supports WIFI/4G expansion
    V315E 15.6" standard version, supports Ethernet, 3-ch serial communication, does not support 4G/WIFI function
    V315E-4G 15.6" 4G version, supports Ethernet, 3-ch serial communication, and come with 4G communication function
    V315E-WIFI 15.6" WiFi version, supports Ethernet, 3-ch serial communication, and come with WiFi communication function

    V300 Series Remote Operation and Maintenance Large Screen Configuration HMI
    Model Name
    Specifications
    V300-4G-ADP V300 series 4G expansion module, only for 7" and 10" HMI
    V300-WIFI-ADP V300 series WiFi expansion module, only for 7" and 10" HMI

    V300 Series Expansion Module
    Model Name
    Specifications
    VT-HDX-4G HDMI display, 3 network ports, 3 serial ports, support 4G/WAN networking
    VT-HDX-WIFI HDMI display, 3 network ports, 3 serial ports, support WiFi/WAN networking

    IoT Module V300-4g-ADP

    • V300 series 4G network expansion module
    • Support PLC/HMI program upload, download and monitoring
    • Support V307E(S)/V310E(S)
    • Support HCFA Cloud platform
    IoT module 4G adapter
    Module Information
    Model Name
    Dimension: mm
    Weight: g
    W1 W2 H1 D1 D2
    V300-4G-ADP 48.00 50.00 60.00 20.00 29.10 40 approx.
    V300-WIFI-ADP
    Indicator Description
    Screen Printing
    Indicator Meaning
    Color
    Status
    Description
    4G-S* 4G Signal Green Not lit No Signal
    Blinking I Finding the Internet
    Blinking II Stand-by
    Blinking III Sending data
    4G-PWR 4G Adapter power Green Not lit No power supply
    Lit Normal power supply
    WIFI-PWR WIFI Adapter power Green Not lit No power supply
    Lit Normal power supply

    IoT Module V300-WIFI-ADP

    • V300 series WIFI network expansion module
    • Network frequency band 2.4G
    • Support PLC/HMI program upload, download and monitoring
    • Support HCFA Cloud platform
    IoT module WIFI adapter
    Module Information
    Model Name
    Dimension: mm
    		 Weight: g
    W1
    W2
    H1
    D1
    D2
    V300-4G-ADP 48.00 50.00 60.00 20.00 29.10 40 approx.
    V300-WIFI-ADP
    Indicator Description
    Screen Printing
    Indicator Meaning
    Color
    Status
    Description
    4G-S* 4G Signal Green Not lit No Signal
    Blinking I Finding the Internet
    Blinking II Stand-by
    Blinking III Sending data
    4G-PWR 4G Adapter power Green Not lit No power supply
    Lit Normal power supply
    WIFI-PWR WIFI Adapter power Green Not lit No power supply
    Lit Normal power supply

    Just Fill The Form
