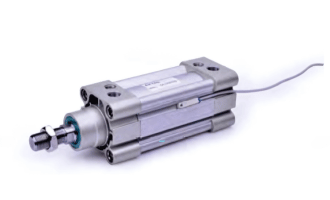

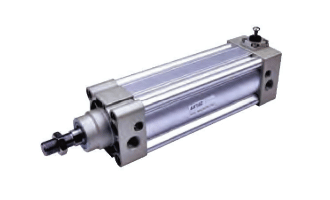

ISO-15552 standard cylinder with piston seal which adopts heterogenous two-way seal structure. It comes with tight dimensions and oil reservation function. The aluminium profile without tie rod has a good corrosion resistance. The seal material with high temperature resistance is adapted, operating temperature range is 0~1500C.

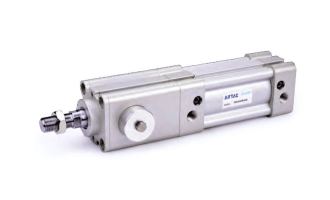

Can be locked at random positions in stroke scope
| Port Sizes: | 32,40,50,63, |
| 80,100, 125 | |
| Acting Type: | Double |
| Operating Pressure | 0.15~0.7MPa |
| (22~100psi) | |
| Proof pressure: | 1.5MPa(215psi) |
| Temperature: | -20~70°C |
| Speed range: | 30~800 mm/s |
| Max. stroke length: | 2000mm |
| Tolerance: | >2.00 mm |

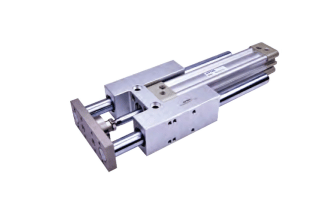

guide frame body provides a multi-directional mounting
| Port Sizes: | 32,40,50,63,80,100 |
| Acting Type: | Double |
| Operating Pressure | 0.15~1.0MPa |
| (22~145psi) | |
| Proof pressure: | 1.5MPa(215psi) |
| Temperature: | -20~70°C |
| Speed range: | 30~500 mm/s |
| Max. stroke length: | 300mm |
| Tolerance: | >2.00 mm |
The buffer adjustment of cylinder is smooth and steady
| Port Sizes: | 32,40,50,63,80,100 |
| 125,160,200,250 | |
| Acting Type: | Double |
| Operating Pressure | 0.15~1.0MPa |
| (22~145psi) | |
| Proof pressure: | 1.5MPa(215psi) |
| Temperature: | -20~70°C |
| Speed range: | 30~800 mm/s |
| Max. stroke length: | 2000mm |
| Tolerance: | >2.00 mm |
